Desktop theme fidelity (macos) has failed on master on DesktopSeparator, with "widget silhouette on the native side only".

Cause. AppKit's separator NSBox draws its 1px line centred in its own frame, which puts it on the tile's third pixel row. The macOS theme's Separator had padding 0 and drew the rule on row 0. The geometry mask trims 2px off every tile edge (ProcessScreenshots.GEOMETRY_EDGE_TRIM), so our row was discarded and the native one was kept. On Fluent and Adwaita both sides draw on row 0, so both are trimmed and the row reads as empty on both sides, which the gate accepts.

Fix.

  • native-themes/macos-aqua/theme.css: Separator moves 2pt from margin to padding (margin 0.57mm, padding 0.53mm, light and dark). Margin and padding are both transparent and the total stays 9px, so a real layout paints the same pixels; only the rule's position within the component's own bounds changes.
  • Themes/MacOSAquaTheme.res: regenerated with the in-tree css-cli. That jar reproduces the committed .res byte for byte from the unchanged CSS, so only this edit is in the diff.
  • fidelity-tests.yaml: the note blaming low contrast was wrong (every line is 13 to 42 levels off its backdrop, past the mask's threshold of 10) and is corrected.

Verification.

  • Re-scored the master run's macOS artifact with the rule shifted to row 2: identical native/CN1 bboxes, 96.30% dark and 96.98% light.
  • FidelityGate at the workflow's epsilon (2.0) goes from rc=20 to OK, with 88 pairs at or above baseline.
  • DesktopNativeThemeContentTest and DesktopComponentsTest pass (33/33).
  • The two separator pairs will appear as new pairs; their scores can be baselined once CI measures them.

🤖 Generated with Claude Code

@shai-almog @claude
macOS Separator: put the rule 2pt inside the component, as AppKit's N…
0dacf29
…SBox does

Desktop theme fidelity (macos) has failed on master on DesktopSeparator: "widget
silhouette on the native side only". AppKit's separator NSBox draws its 1px line
centred in its own frame, on the tile's third row; ours had padding 0 and drew it
on row 0, which the geometry mask's 2px edge trim discards. The 2pt moves from
margin to padding, so a real layout paints the same pixels.

Re-scoring the CI artifact with the rule on row 2: identical bboxes, 96.3%/97.0%,
and FidelityGate passes at the workflow's epsilon. The yaml note blaming contrast
was wrong and is corrected.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@shai-almog

shai-almog commented Oct 16, 2026

Copy link
Copy Markdown
Collaborator Author

@codex review

@chatgpt-codex-connector

chatgpt-codex-connector Bot commented Oct 16, 2026 •
edited
Loading

Copy link
Copy Markdown

Codex Review Summary

This comment shows the latest Codex review activity on this pull request.

Review Status Commit Review trigger
📝 Code Review ✅ Completed 2026-10-16T17:38:00.465631Z 3b38def Manual request
ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

  • Open a pull request for review
  • Mark a draft as ready
  • Comment "@codex review" or "@codex security review".

Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings.

chatgpt-codex-connector[bot]
chatgpt-codex-connector Bot reviewed Oct 16, 2026
View reviewed changes

@chatgpt-codex-connector chatgpt-codex-connector Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 0dacf29563

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

  • Open a pull request for review
  • Mark a draft as ready
  • Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

Comment thread scripts/fidelity-app/common/src/main/resources/fidelity-tests.yaml
Comment thread native-themes/macos-aqua/theme.css Outdated
@github-actions

github-actions Bot commented Oct 16, 2026 •
edited
Loading

Copy link
Copy Markdown
Contributor

Developer Guide build artifacts are available for download from this workflow run:

Developer Guide quality checks:

  • AsciiDoc linter: No issues found (report)
  • Vale: No alerts found (report)
  • Paragraph capitalization: No paragraph capitalization issues (report)
  • LanguageTool: No grammar matches (report)
  • Image references: No unused images detected (report)

@shai-almog

shai-almog commented Oct 16, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Native fidelity (Android, Material 3)

54 pairs compared -- median 95.6%, worst 91.3% (FlatButton_pressed_dark), 25th pct 94.9%, mean 95.7%.

Distribution -- >=99%: 2 | 95-99%: 37 | 90-95%: 15 | <90%: 0

Component State Appearance Material Fidelity SSIM mean delta vs base Geometry
FlatButton pressed dark normal 91.3% 0.899 3.10 0.0 ok
Tabs normal light normal 92.3% 0.914 3.05 0.0 ok
Button pressed dark normal 92.6% 0.949 4.32 0.0 ok
FlatButton normal dark normal 93.2% 0.938 2.69 0.0 ok
Button disabled dark normal 93.3% 0.928 2.20 0.0 ok
Button pressed light normal 93.3% 0.952 3.68 0.0 ok
FlatButton normal light normal 93.7% 0.941 2.29 0.0 ok
FlatButton pressed light normal 93.8% 0.942 2.56 0.0 ok
FloatingActionButton pressed light normal 94.4% 0.927 2.82 0.0 OFF (h 0.88)
RadioButton normal dark normal 94.5% 0.963 2.19 0.0 ok

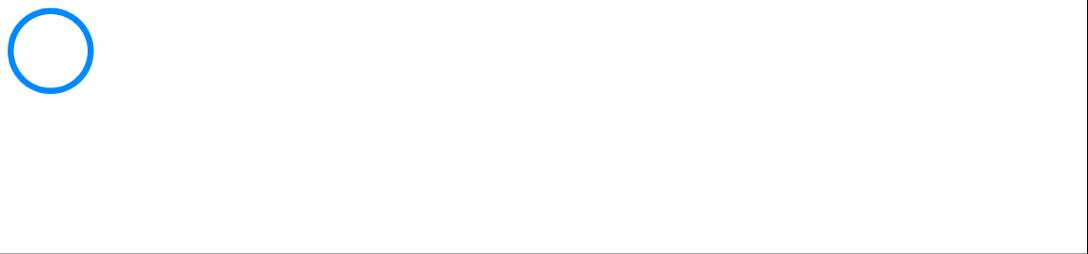

RadioButton normal light normal 94.7% 0.964 1.85 0.0 ok

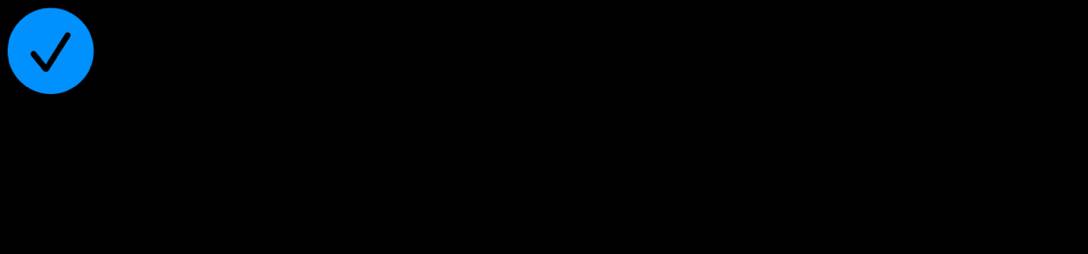

CheckBox selected dark normal 94.7% 0.950 2.60 0.0 ok
RadioButton selected dark normal 94.8% 0.963 2.42 0.0 ok
CheckBox normal dark normal 94.9% 0.952 2.69 0.0 ok
Button normal dark normal 94.9% 0.949 3.16 0.0 ok
CheckBox normal light normal 95.0% 0.953 2.30 0.0 ok

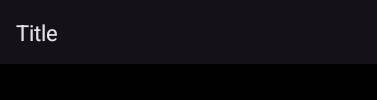

Toolbar normal dark normal 95.1% 0.906 1.60 0.0 ok
RaisedButton pressed dark normal 95.2% 0.950 2.39 0.0 ok
CheckBox disabled dark normal 95.2% 0.954 1.47 0.0 ok
CheckBox disabled light normal 95.2% 0.956 1.34 0.0 ok

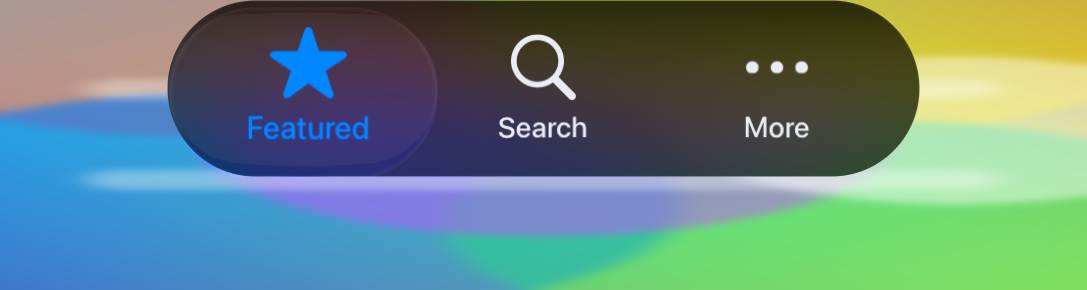

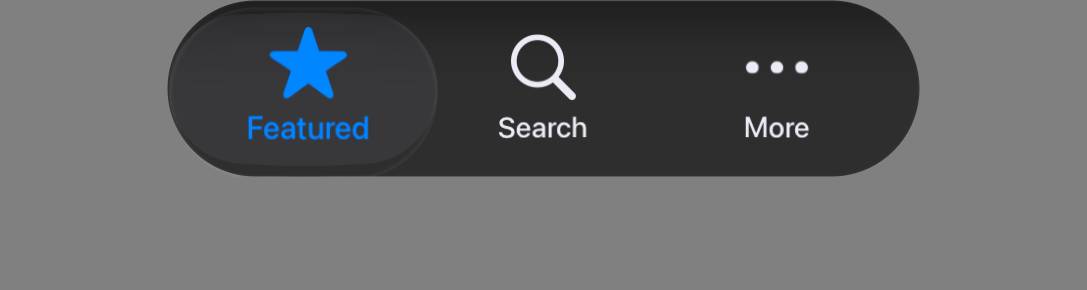

Tabs normal dark normal 95.2% 0.913 3.65 0.0 ok
RadioButton disabled dark normal 95.3% 0.963 1.18 0.0 ok
RadioButton selected light normal 95.3% 0.964 1.84 0.0 ok

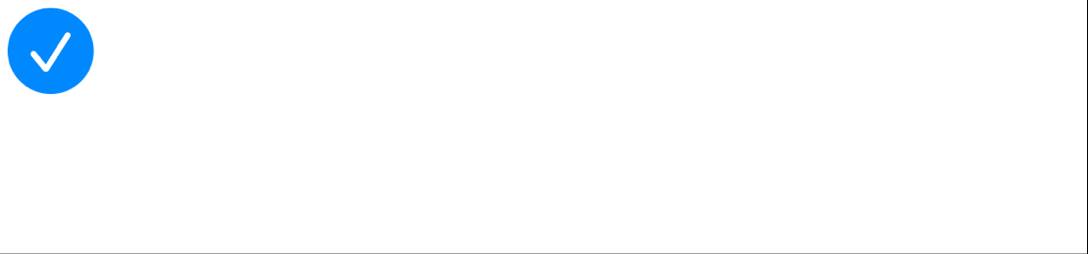

CheckBox selected light normal 95.4% 0.952 2.06 0.0 ok

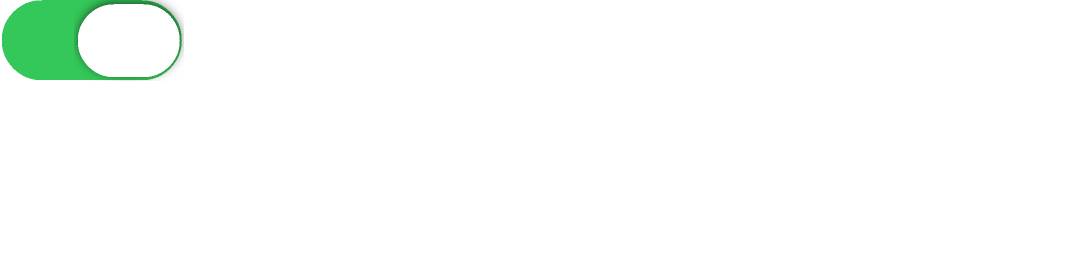

Switch selected light normal 95.4% 0.966 1.59 0.0 ok
Switch selected dark normal 95.5% 0.966 1.86 0.0 ok
RadioButton disabled light normal 95.5% 0.966 1.08 0.0 ok
Switch disabled dark normal 95.6% 0.961 0.85 0.0 ok

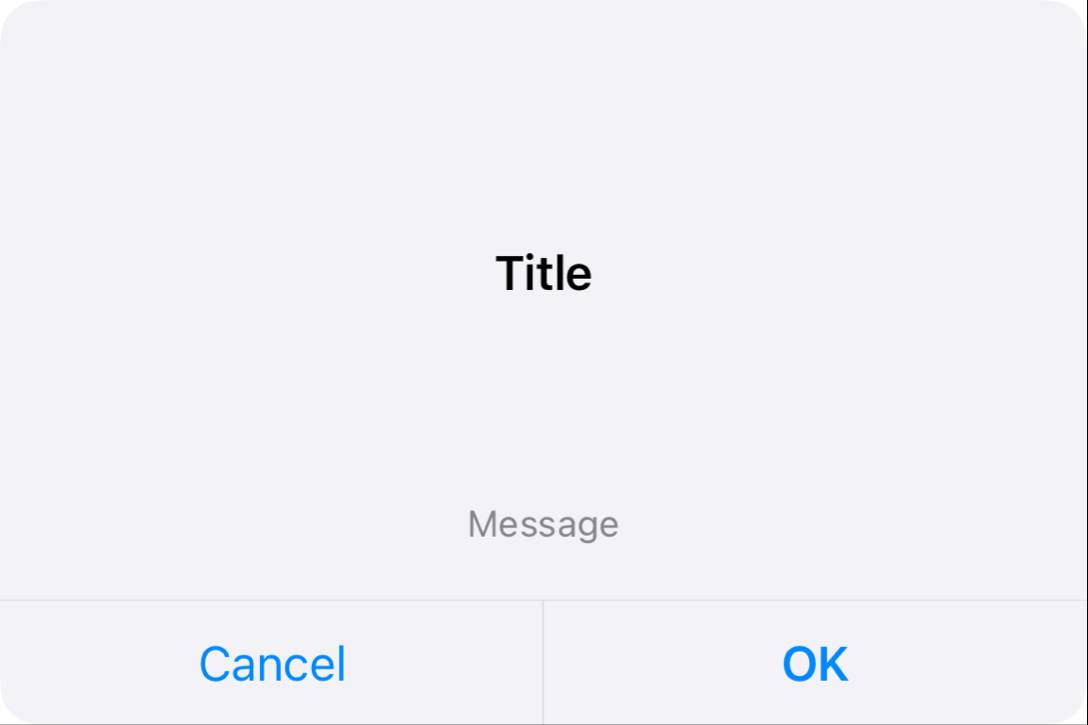

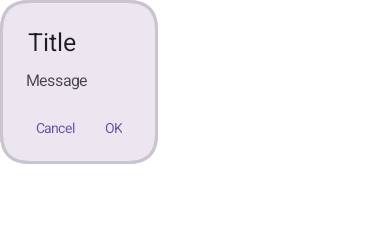

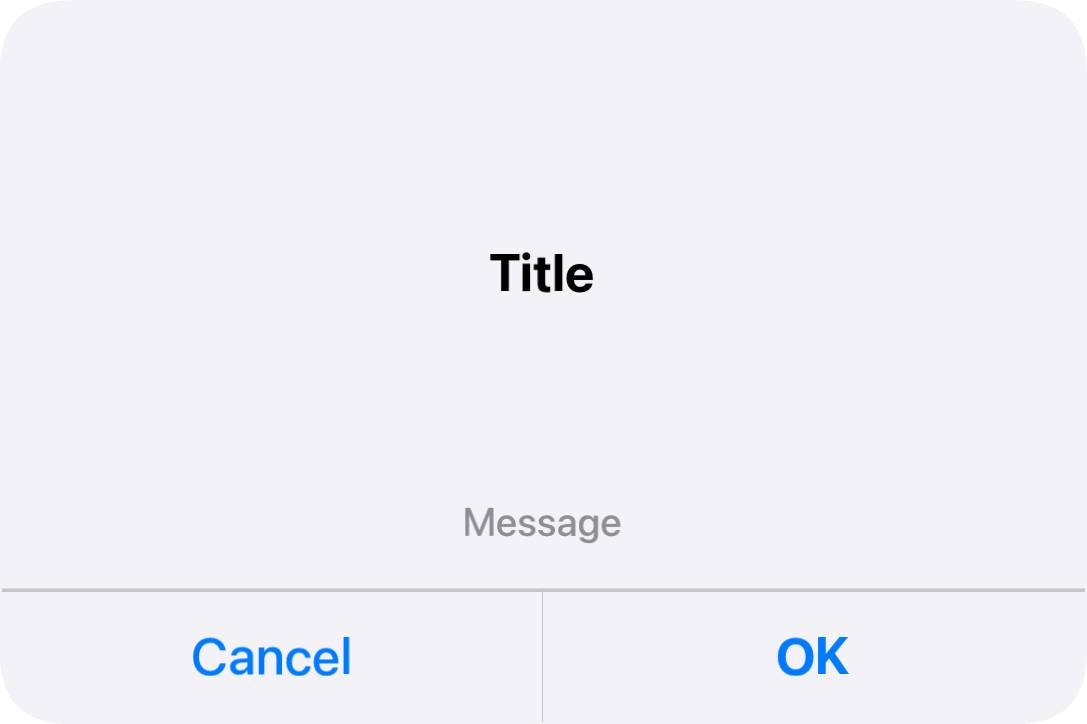

Dialog normal light normal 95.7% 0.930 2.30 0.0 ok
RaisedButton pressed light normal 95.8% 0.958 2.16 0.0 ok

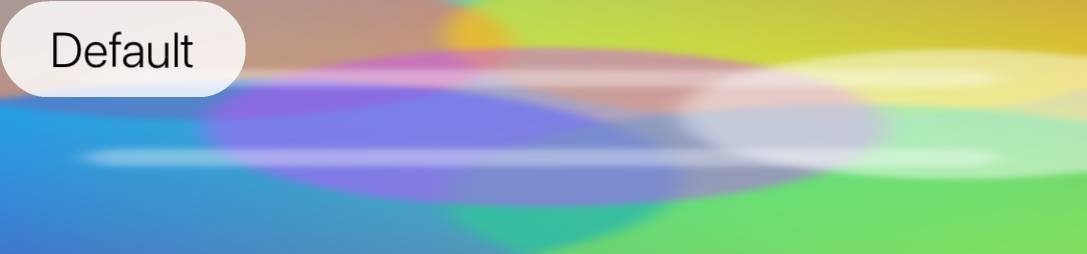

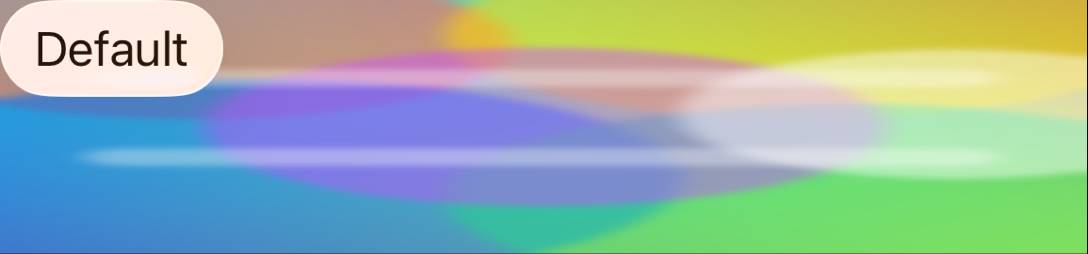

Button normal light normal 95.8% 0.953 2.46 0.0 ok

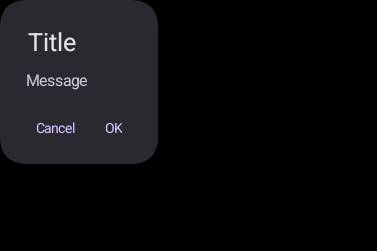

Dialog normal dark normal 95.8% 0.932 2.30 0.0 ok

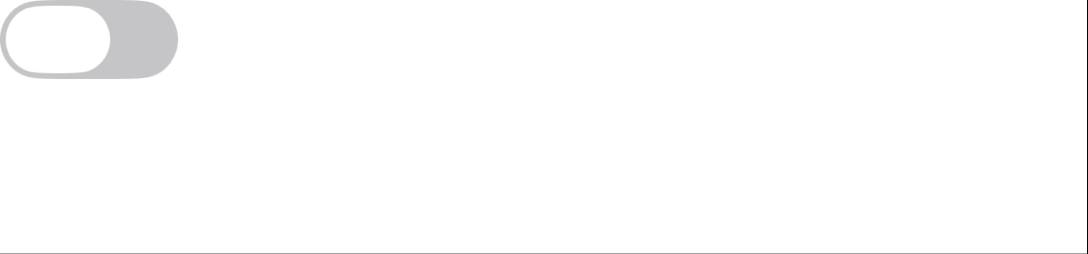

Switch normal light normal 96.0% 0.961 1.45 0.0 ok
FloatingActionButton normal light normal 96.1% 0.937 1.14 0.0 ok
FloatingActionButton pressed dark normal 96.2% 0.951 2.45 0.0 ok
Switch normal dark normal 96.2% 0.962 1.39 0.0 ok
TextField disabled dark normal 96.2% 0.965 0.76 0.0 ok

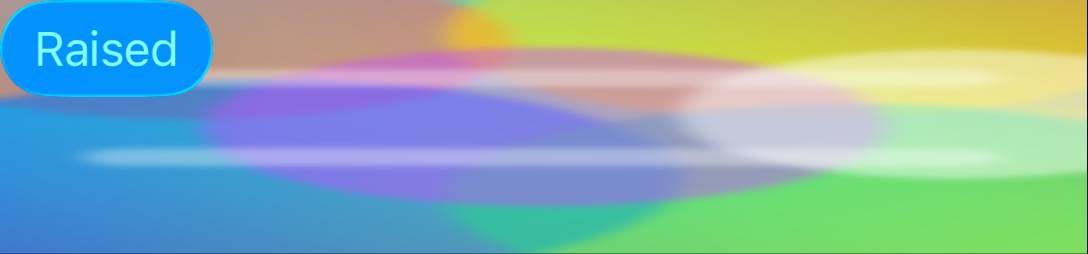

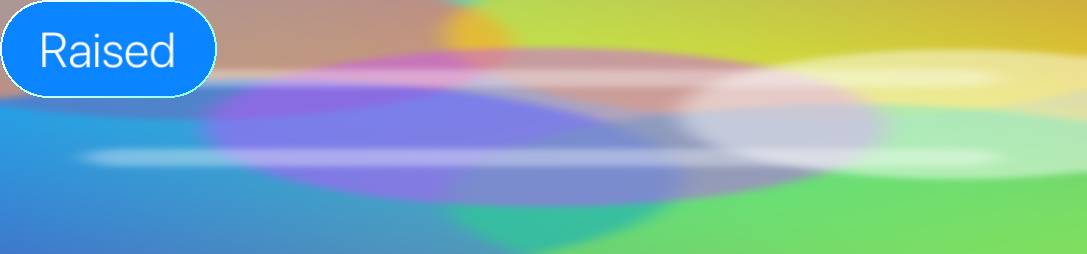

RaisedButton normal dark normal 96.4% 0.952 1.78 0.0 ok

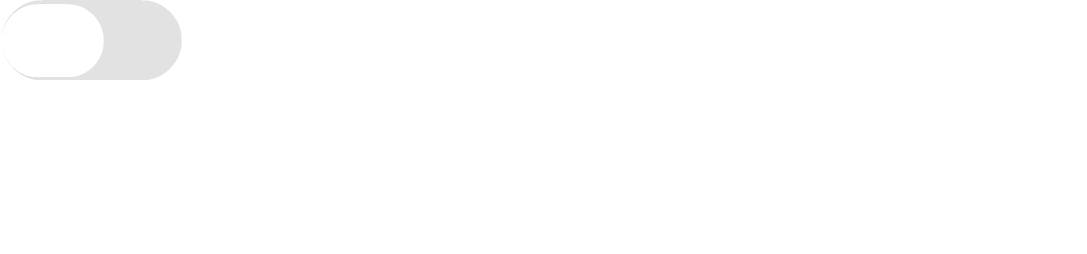

Switch disabled light normal 96.4% 0.970 0.61 0.0 ok
Button disabled light normal 96.8% 0.960 1.06 0.0 ok
ProgressBar normal dark normal 96.9% 0.967 2.03 0.0 OFF (h 1.50)
RaisedButton disabled dark normal 97.0% 0.955 0.89 0.0 ok
FloatingActionButton normal dark normal 97.1% 0.952 1.43 0.0 ok

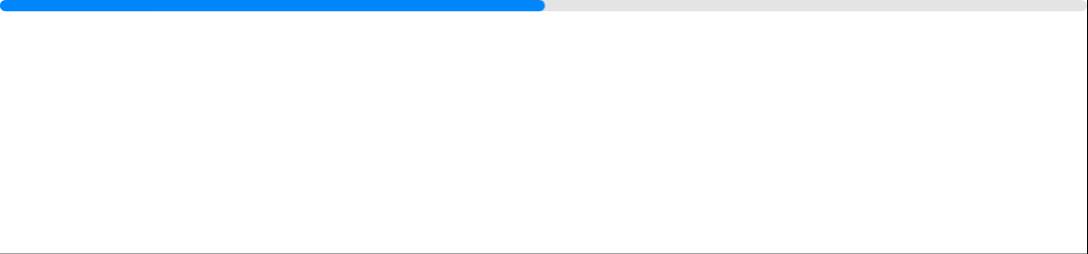

ProgressBar normal light normal 97.3% 0.974 1.53 0.0 OFF (h 1.50)

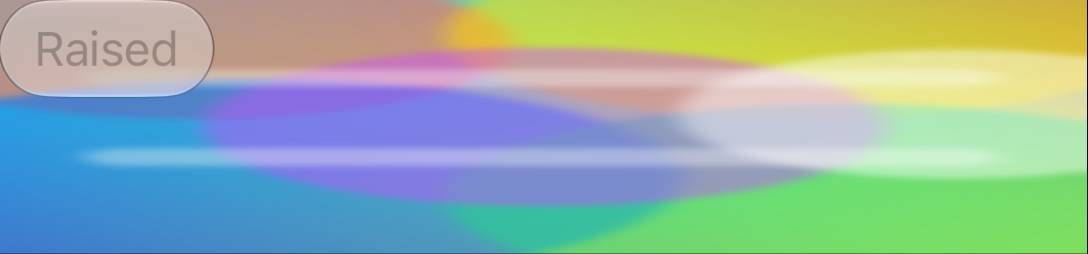

RaisedButton disabled light normal 97.3% 0.961 0.79 0.0 ok
TextField disabled light normal 97.3% 0.965 0.79 0.0 ok
RaisedButton normal light normal 97.3% 0.961 1.40 0.0 ok
TextField normal dark normal 97.6% 0.958 1.83 0.0 ok
TextField normal light normal 97.6% 0.958 1.63 0.0 ok
Slider normal dark normal 98.4% 0.990 0.87 0.0 ok
Toolbar normal light normal 98.7% 0.974 1.28 0.0 ok
Slider normal light normal 99.0% 0.991 0.47 0.0 ok
Slider disabled dark normal 99.6% 0.993 0.22 0.0 ok

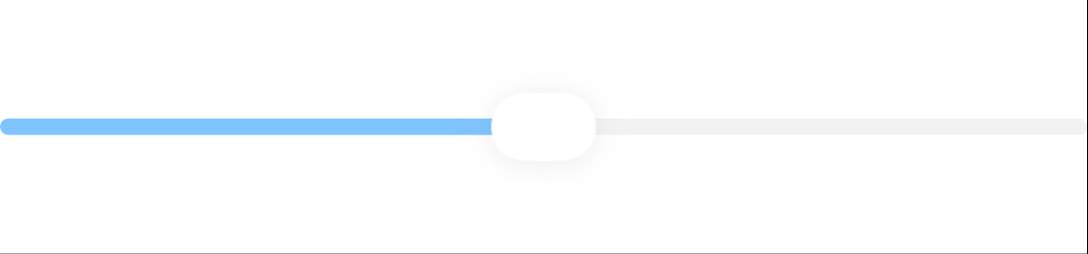

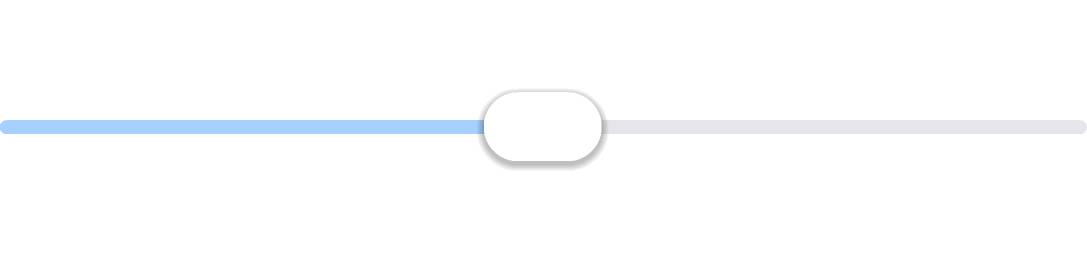

Slider disabled light normal 99.6% 0.993 0.18 0.0 ok
Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score
Component State Appearance bbox dx,dy (px) w ratio h ratio center off (px) radius native->cn1 (px)
FloatingActionButton pressed light +0,+0 0.929 0.881 4.0 -
FloatingActionButton normal light +0,+0 0.946 0.912 2.9 -
Button pressed dark +0,+0 0.947 0.975 2.6 -
Button disabled dark +0,+0 0.947 0.975 2.6 -
Button pressed light +0,+0 0.947 0.975 2.6 -
Button normal dark +0,+0 0.947 0.975 2.6 -
RaisedButton pressed dark +0,+0 0.945 0.975 2.6 -
RaisedButton pressed light +0,+0 0.945 0.975 2.6 -
Button normal light +0,+0 0.947 0.975 2.6 -
RaisedButton normal dark +0,+0 0.945 0.975 2.6 -
Button disabled light +0,+0 0.947 0.975 2.6 -

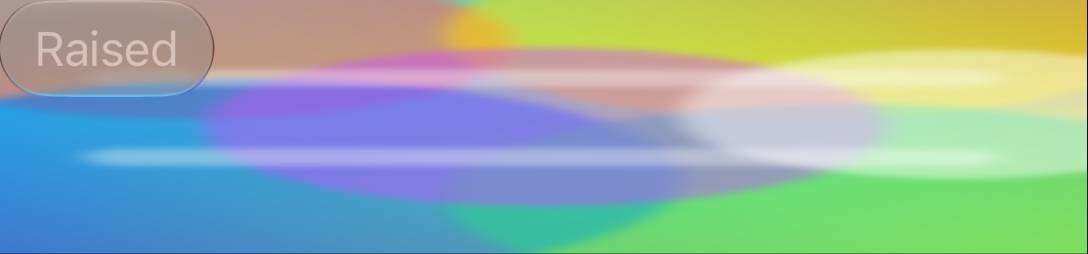

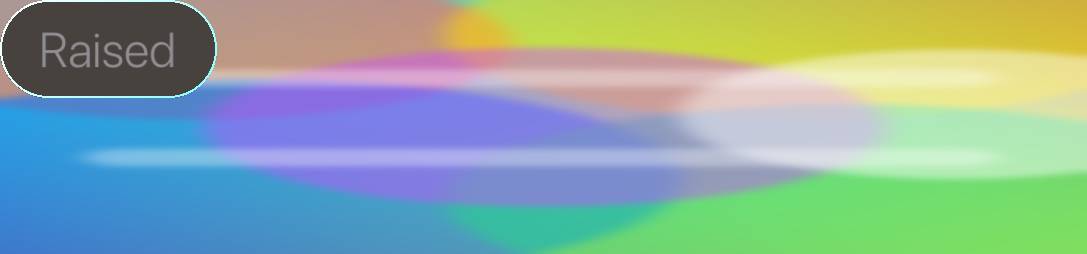

RaisedButton disabled dark +0,+0 0.945 0.975 2.6 -
RaisedButton disabled light +0,+0 0.945 0.975 2.6 -
RaisedButton normal light +0,+0 0.945 0.975 2.6 -
RadioButton normal dark +1,+1 1.029 1.000 2.2 -
RadioButton normal light +1,+1 1.029 1.000 2.2 -
RadioButton selected dark +1,+1 1.029 1.000 2.2 -
RadioButton disabled dark +1,+1 1.029 1.000 2.2 -
RadioButton selected light +1,+1 1.029 1.000 2.2 -
Switch selected light +0,+0 1.080 1.063 2.2 -
RadioButton disabled light +1,+1 1.029 1.000 2.2 -
CheckBox selected dark +1,+1 1.013 1.000 1.8 -
CheckBox normal dark +1,+1 1.013 1.000 1.8 -
CheckBox normal light +1,+1 1.013 1.000 1.8 -

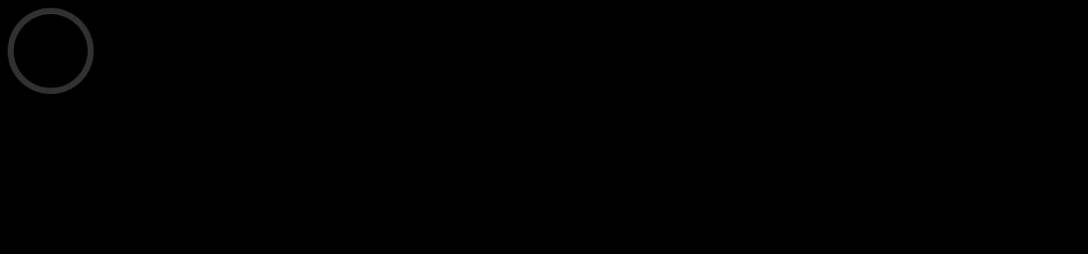

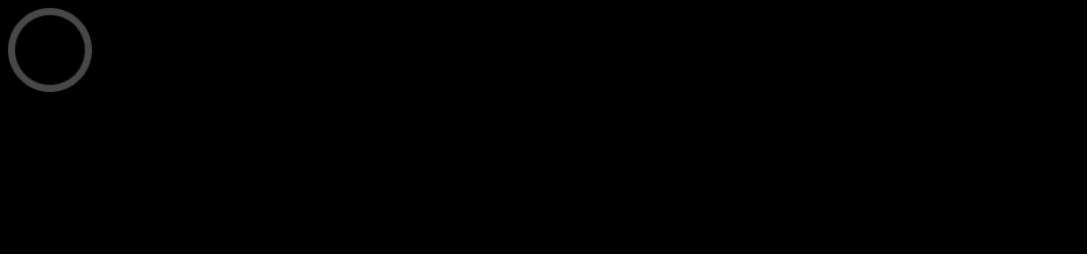

CheckBox disabled dark +1,+1 1.013 1.000 1.8 -

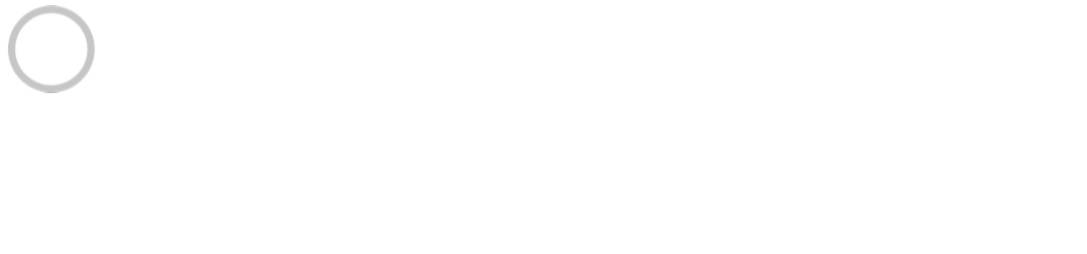

CheckBox disabled light +1,+1 1.013 1.000 1.8 -
CheckBox selected light +1,+1 1.013 1.000 1.8 -
Switch selected dark +0,+0 1.060 1.031 1.6 -
Switch disabled dark +0,-1 1.060 1.031 1.6 -
Dialog normal light +0,+0 1.007 0.982 1.6 -

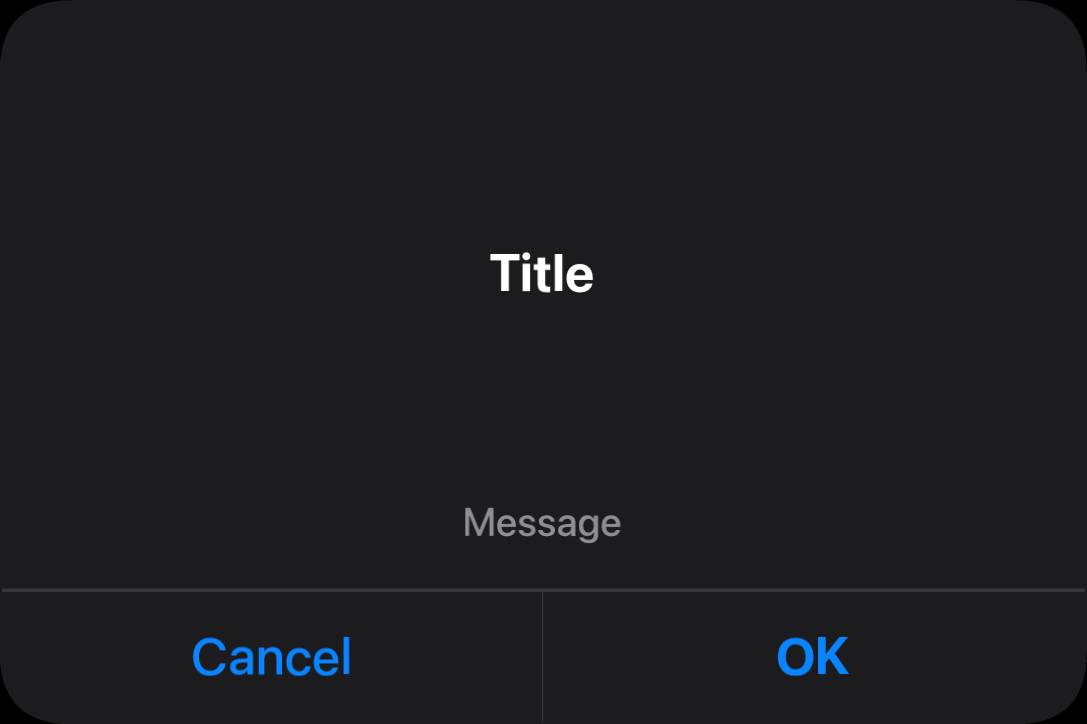

Dialog normal dark +0,+0 1.007 0.982 1.6 -
Switch normal light +0,-1 1.060 1.031 1.6 -
Switch normal dark +0,-1 1.060 1.031 1.6 -
Switch disabled light +0,-1 1.060 1.031 1.6 -
FloatingActionButton pressed dark +0,+0 0.963 0.963 1.4 -
FloatingActionButton normal dark +0,+0 0.963 0.963 1.4 -
Toolbar normal light -1,+1 1.000 1.000 1.4 -
FlatButton pressed dark +0,+0 0.977 0.975 1.1 -
FlatButton normal dark +0,+0 0.977 0.975 1.1 -
FlatButton normal light +0,+0 0.977 0.975 1.1 -
FlatButton pressed light +0,+0 0.977 0.975 1.1 -

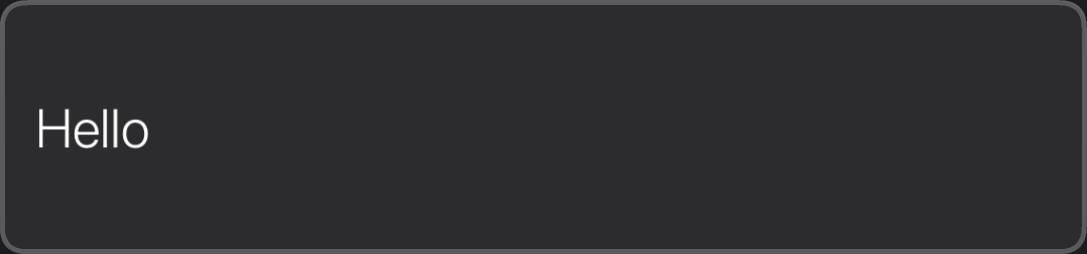

TextField normal dark +0,+0 1.015 1.036 1.1 -
TextField normal light +0,+0 1.015 1.036 1.1 -
Toolbar normal dark +0,+0 1.000 1.032 1.0 -
ProgressBar normal dark +0,+0 1.000 1.500 1.0 -
ProgressBar normal light +0,+0 1.000 1.500 1.0 -

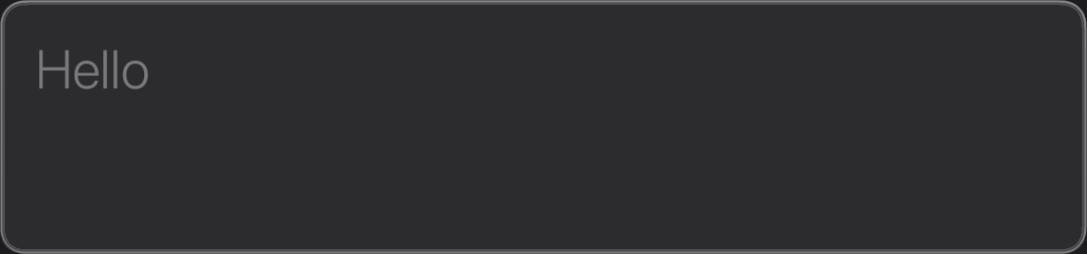

TextField disabled dark +0,+0 1.015 1.018 0.7 -
TextField disabled light +0,+0 1.015 1.018 0.7 -
Tabs normal light +0,+1 1.000 0.984 0.5 -

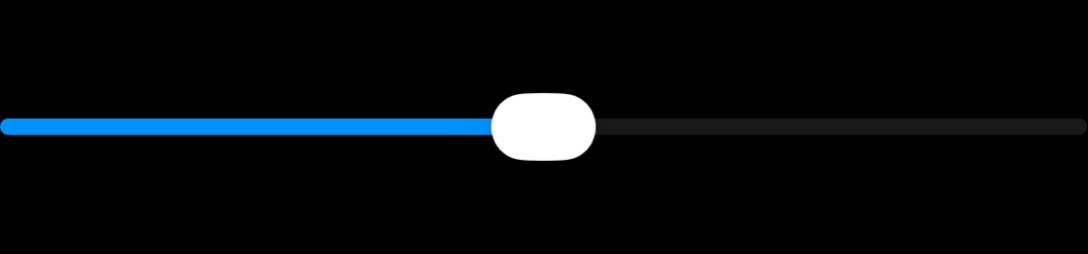

Slider normal dark +1,+0 0.996 1.000 0.5 -
Slider normal light +1,+0 0.996 1.000 0.5 -
Tabs normal dark +0,+0 1.000 1.000 0.0 -
Slider disabled dark +0,+0 1.000 1.000 0.0 -
Slider disabled light +0,+0 1.000 1.000 0.0 -

Side-by-side comparisons (worst first)

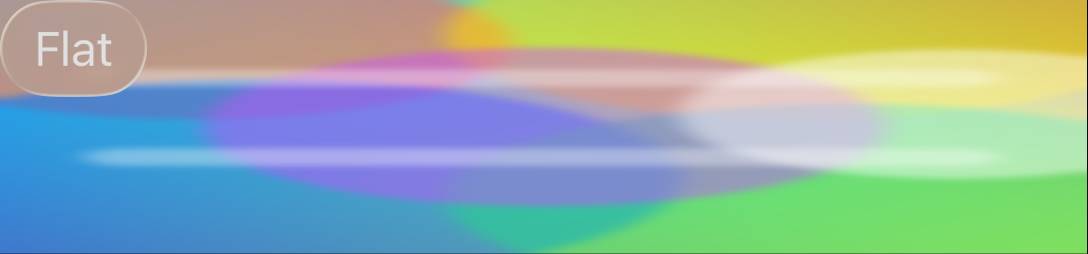

  • FlatButton_pressed_dark -- 91.25% fidelity (SSIM 0.8985) (no change)

    native FlatButton_pressed_dark cn1 FlatButton_pressed_dark
    Left: native widget. Right: Codename One render.

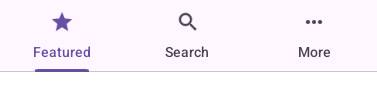

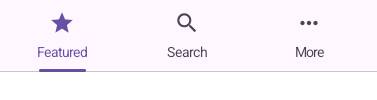

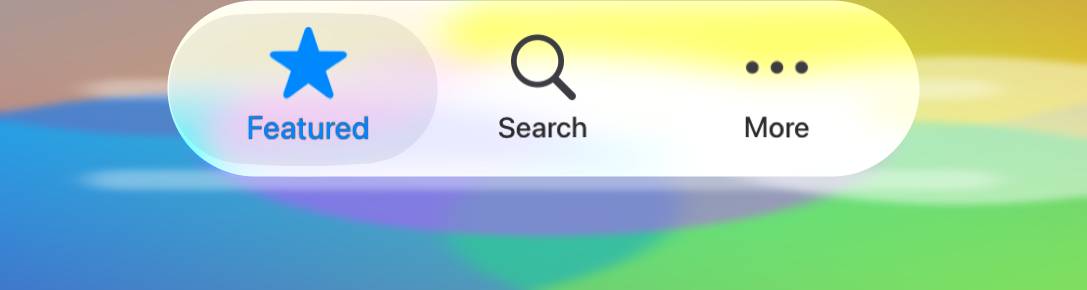

  • Tabs_normal_light -- 92.28% fidelity (SSIM 0.9140) (no change)

    native Tabs_normal_light cn1 Tabs_normal_light
    Left: native widget. Right: Codename One render.

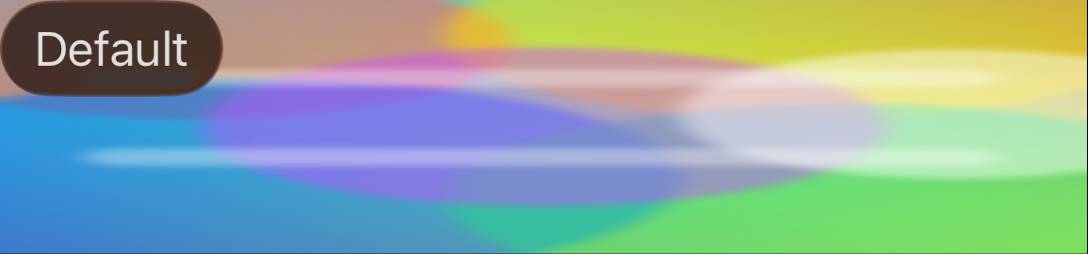

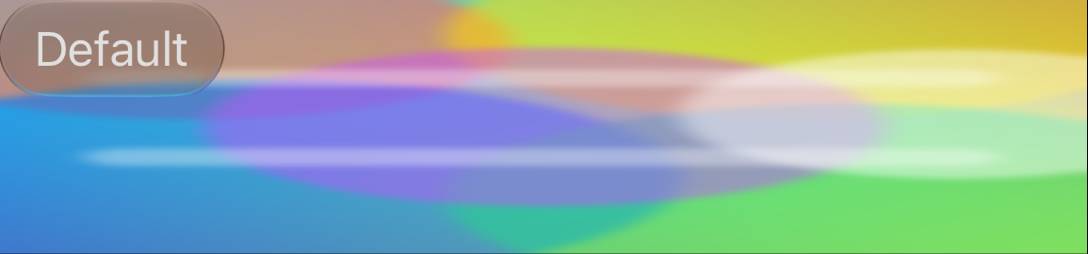

  • Button_pressed_dark -- 92.61% fidelity (SSIM 0.9485) (no change)

    native Button_pressed_dark cn1 Button_pressed_dark
    Left: native widget. Right: Codename One render.

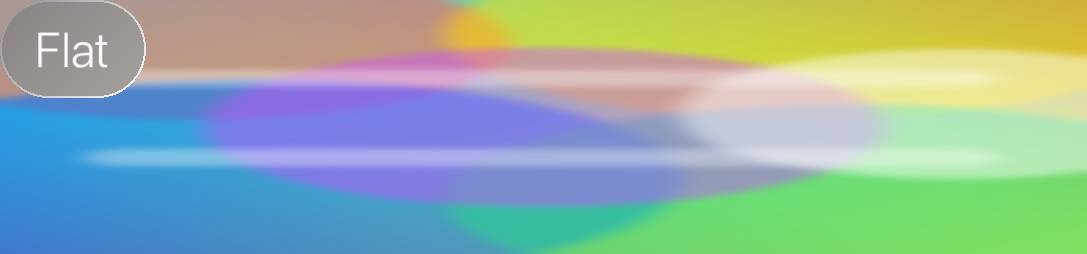

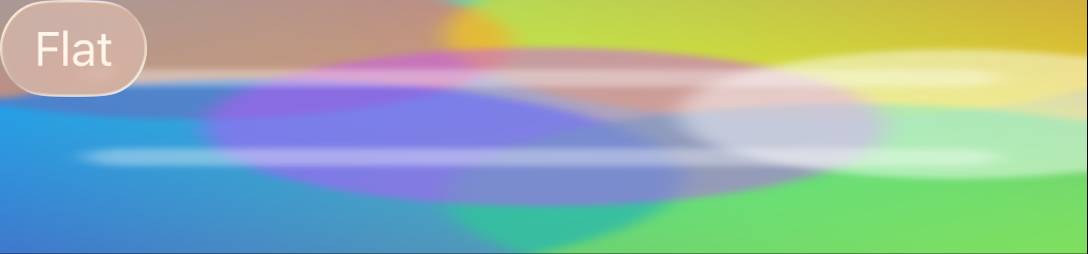

  • FlatButton_normal_dark -- 93.24% fidelity (SSIM 0.9381) (no change)

    native FlatButton_normal_dark cn1 FlatButton_normal_dark
    Left: native widget. Right: Codename One render.

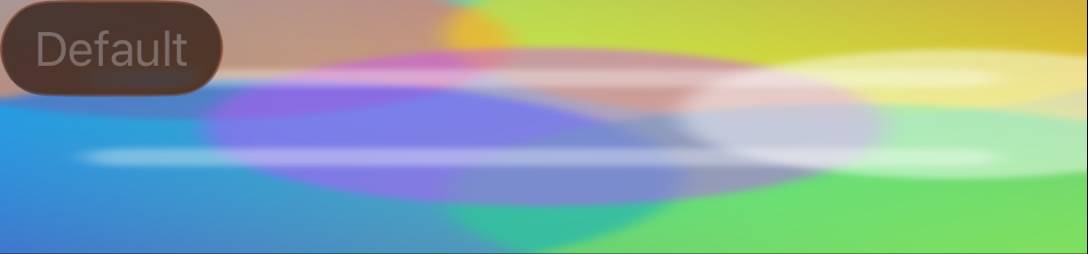

  • Button_disabled_dark -- 93.26% fidelity (SSIM 0.9278) (no change)

    native Button_disabled_dark cn1 Button_disabled_dark
    Left: native widget. Right: Codename One render.

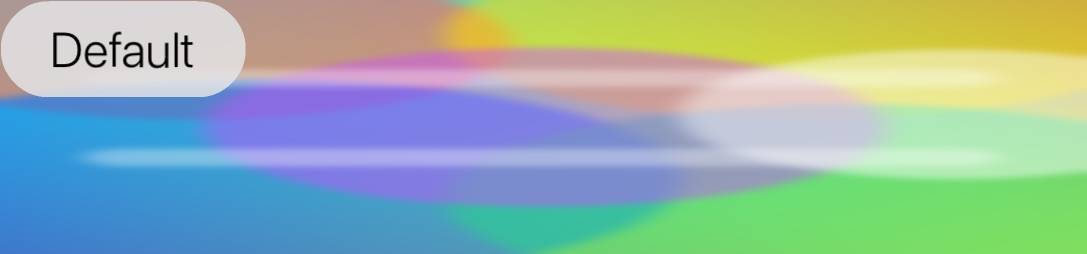

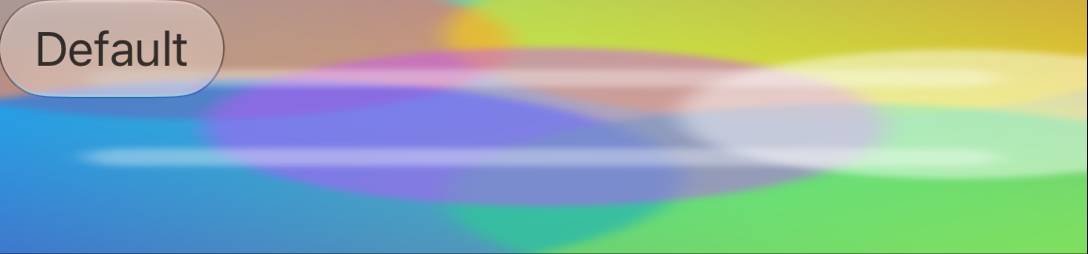

  • Button_pressed_light -- 93.34% fidelity (SSIM 0.9521) (no change)

    native Button_pressed_light cn1 Button_pressed_light
    Left: native widget. Right: Codename One render.

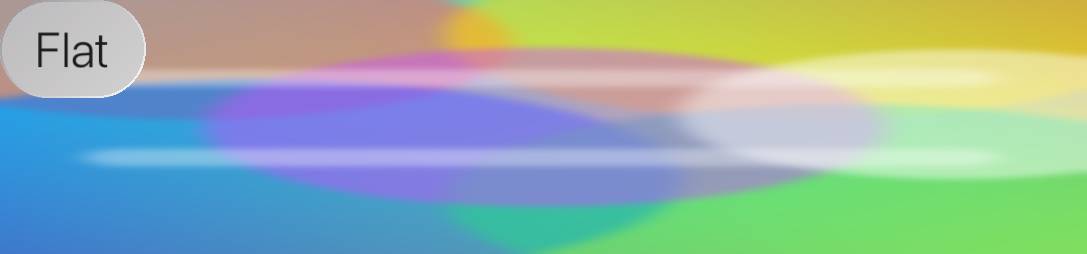

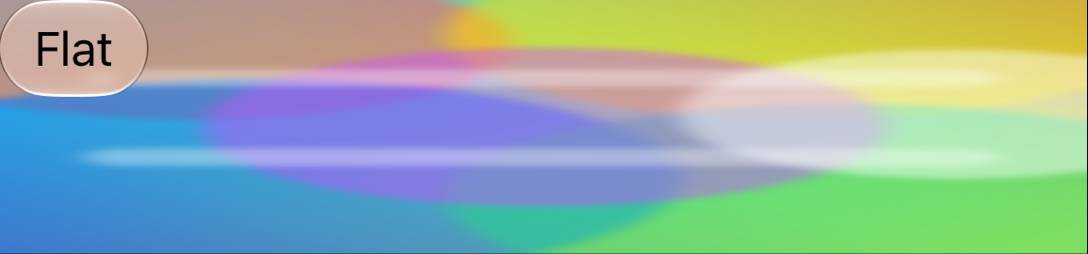

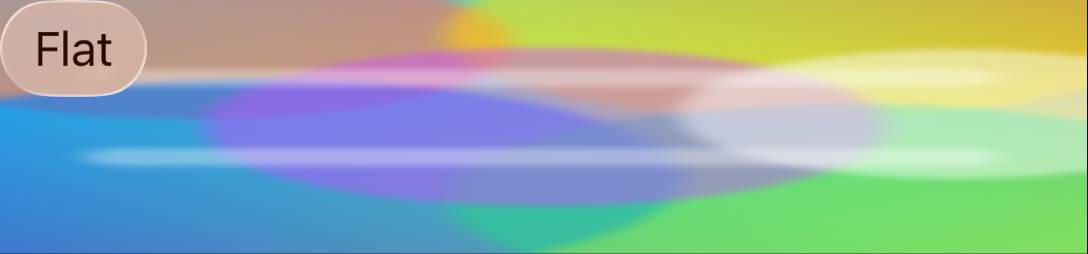

  • FlatButton_normal_light -- 93.72% fidelity (SSIM 0.9410) (no change)

    native FlatButton_normal_light cn1 FlatButton_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_light -- 93.77% fidelity (SSIM 0.9424) (no change)

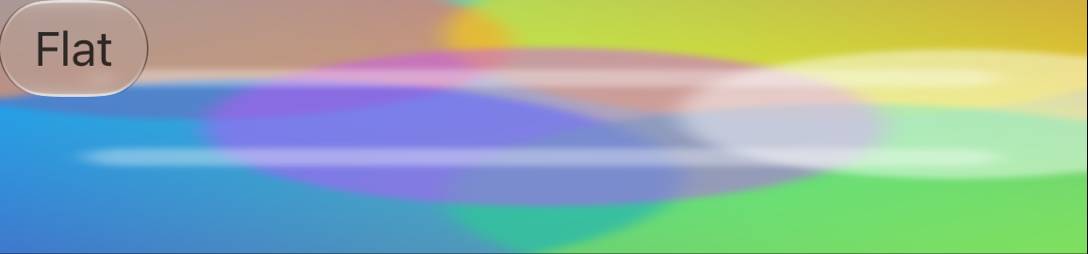

    native FlatButton_pressed_light cn1 FlatButton_pressed_light
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_pressed_light -- 94.44% fidelity (SSIM 0.9273) (no change)

    native FloatingActionButton_pressed_light cn1 FloatingActionButton_pressed_light
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_dark -- 94.46% fidelity (SSIM 0.9630) (no change)

    native RadioButton_normal_dark cn1 RadioButton_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_light -- 94.69% fidelity (SSIM 0.9643) (no change)

    native RadioButton_normal_light cn1 RadioButton_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_dark -- 94.71% fidelity (SSIM 0.9502) (no change)

    native CheckBox_selected_dark cn1 CheckBox_selected_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_dark -- 94.79% fidelity (SSIM 0.9630) (no change)

    native RadioButton_selected_dark cn1 RadioButton_selected_dark
    Left: native widget. Right: Codename One render.

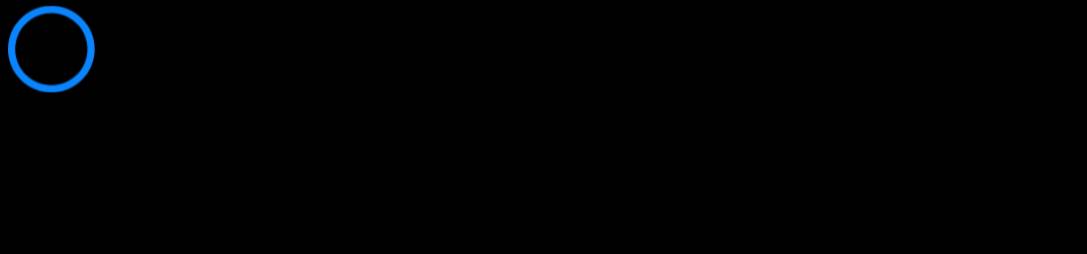

  • CheckBox_normal_dark -- 94.93% fidelity (SSIM 0.9516) (no change)

    native CheckBox_normal_dark cn1 CheckBox_normal_dark
    Left: native widget. Right: Codename One render.

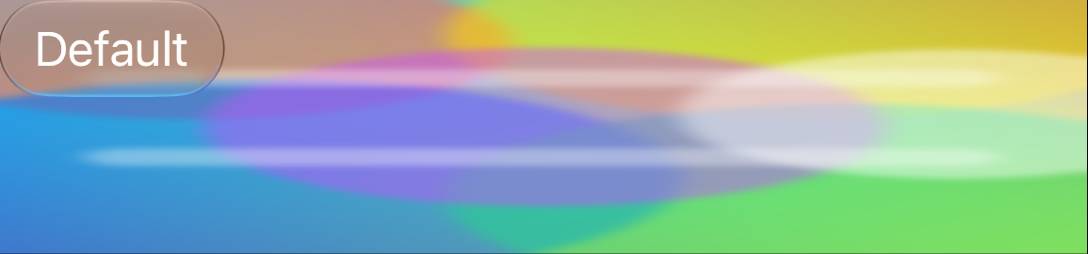

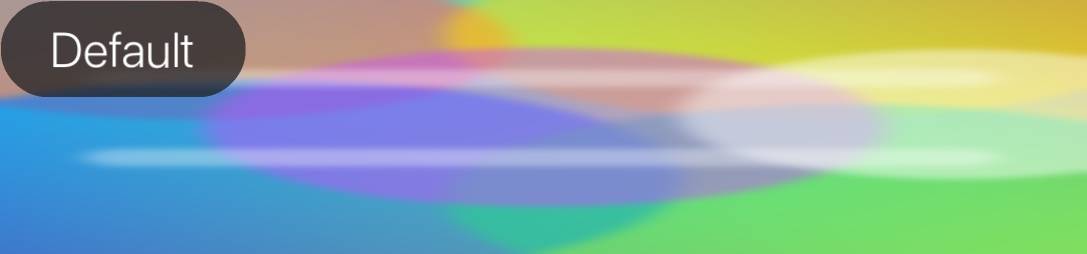

  • Button_normal_dark -- 94.94% fidelity (SSIM 0.9491) (no change)

    native Button_normal_dark cn1 Button_normal_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_light -- 95.03% fidelity (SSIM 0.9531) (no change)

    native CheckBox_normal_light cn1 CheckBox_normal_light
    Left: native widget. Right: Codename One render.

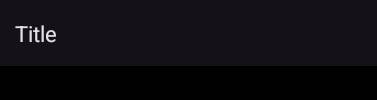

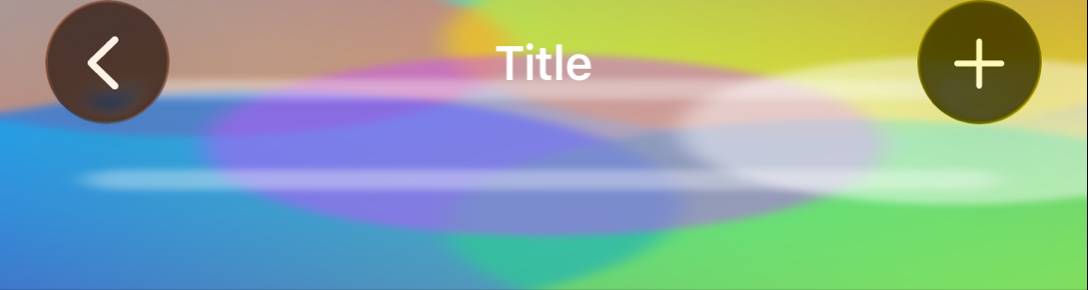

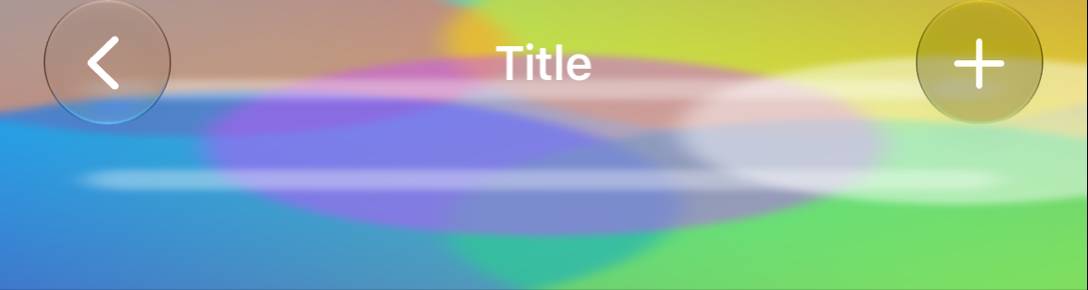

  • Toolbar_normal_dark -- 95.07% fidelity (SSIM 0.9059) (no change)

    native Toolbar_normal_dark cn1 Toolbar_normal_dark
    Left: native widget. Right: Codename One render.

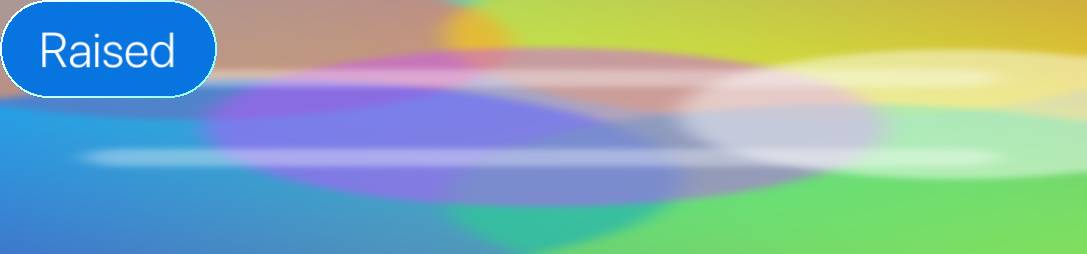

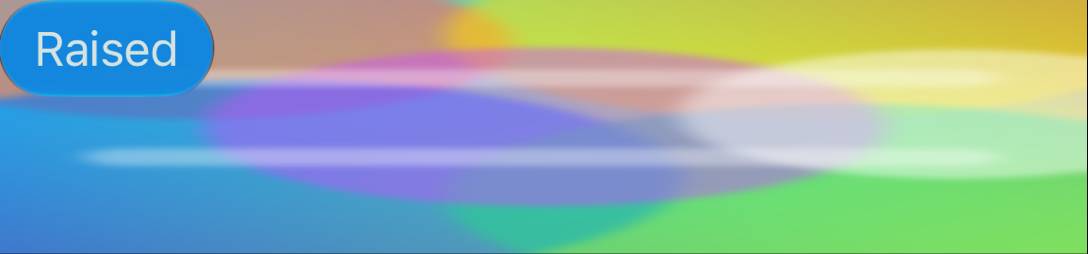

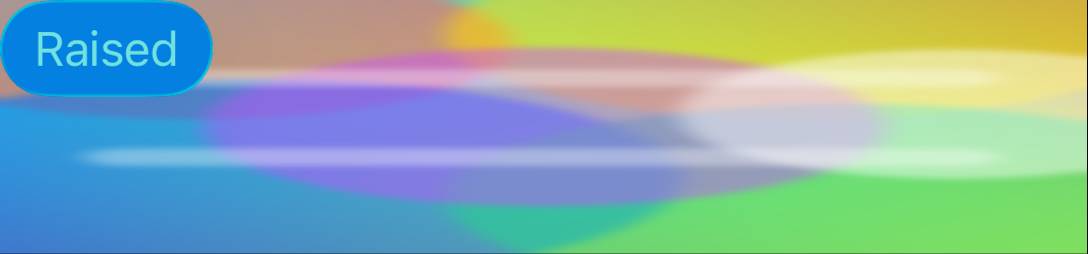

  • RaisedButton_pressed_dark -- 95.19% fidelity (SSIM 0.9501) (no change)

    native RaisedButton_pressed_dark cn1 RaisedButton_pressed_dark
    Left: native widget. Right: Codename One render.

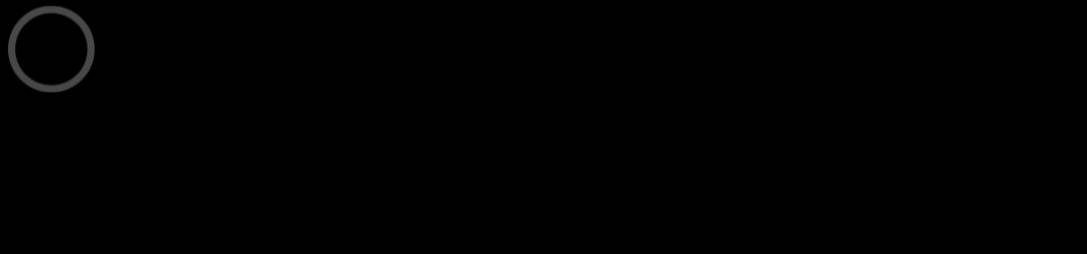

  • CheckBox_disabled_dark -- 95.20% fidelity (SSIM 0.9538) (no change)

    native CheckBox_disabled_dark cn1 CheckBox_disabled_dark
    Left: native widget. Right: Codename One render.

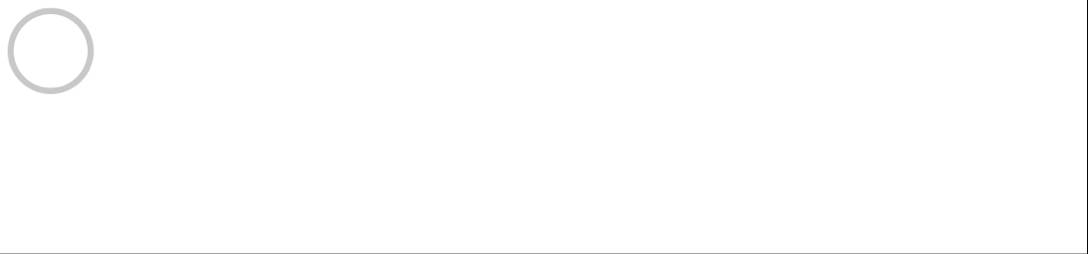

  • CheckBox_disabled_light -- 95.21% fidelity (SSIM 0.9562) (no change)

    native CheckBox_disabled_light cn1 CheckBox_disabled_light
    Left: native widget. Right: Codename One render.

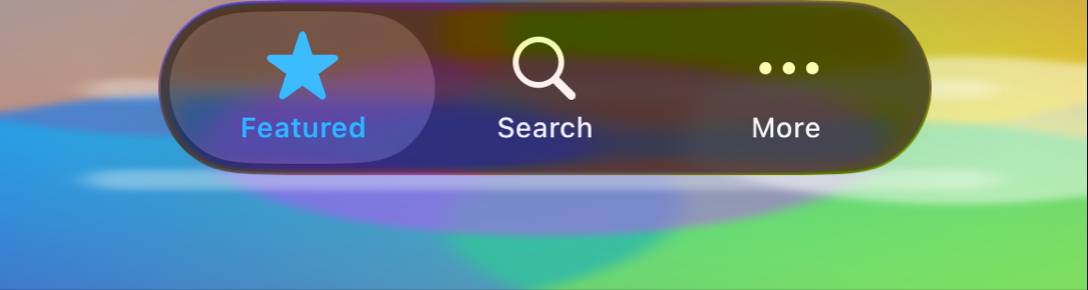

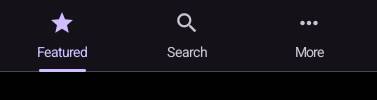

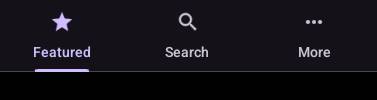

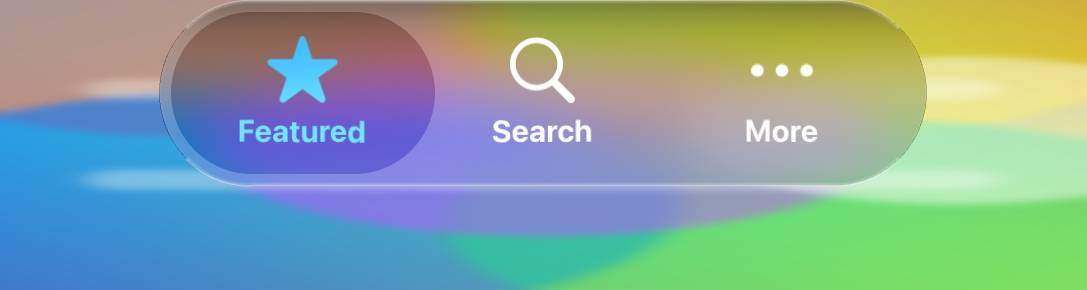

  • Tabs_normal_dark -- 95.23% fidelity (SSIM 0.9125) (no change)

    native Tabs_normal_dark cn1 Tabs_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_dark -- 95.29% fidelity (SSIM 0.9630) (no change)

    native RadioButton_disabled_dark cn1 RadioButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_light -- 95.33% fidelity (SSIM 0.9642) (no change)

    native RadioButton_selected_light cn1 RadioButton_selected_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_light -- 95.37% fidelity (SSIM 0.9524) (no change)

    native CheckBox_selected_light cn1 CheckBox_selected_light
    Left: native widget. Right: Codename One render.

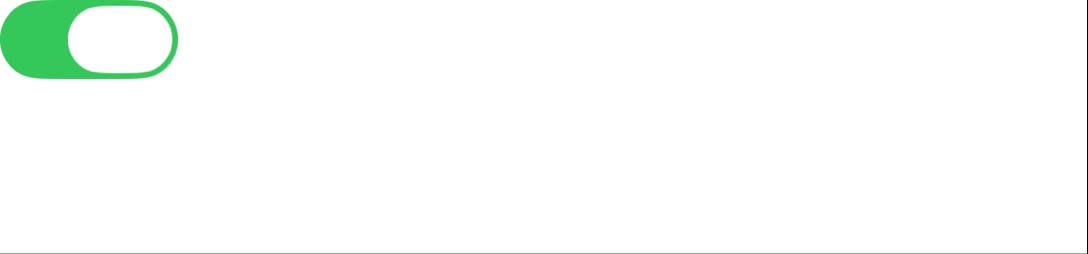

  • Switch_selected_light -- 95.37% fidelity (SSIM 0.9658) (no change)

    native Switch_selected_light cn1 Switch_selected_light
    Left: native widget. Right: Codename One render.

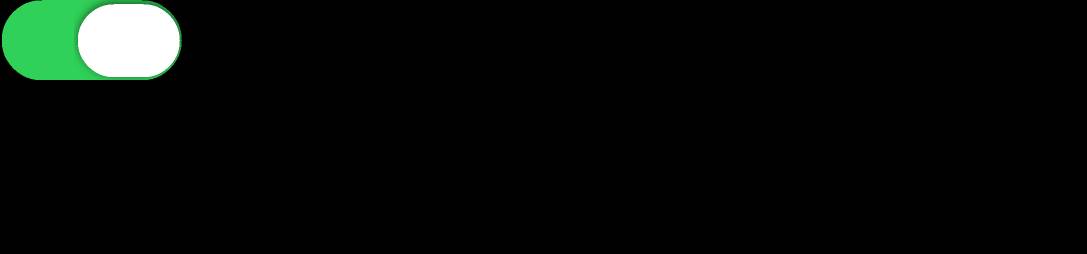

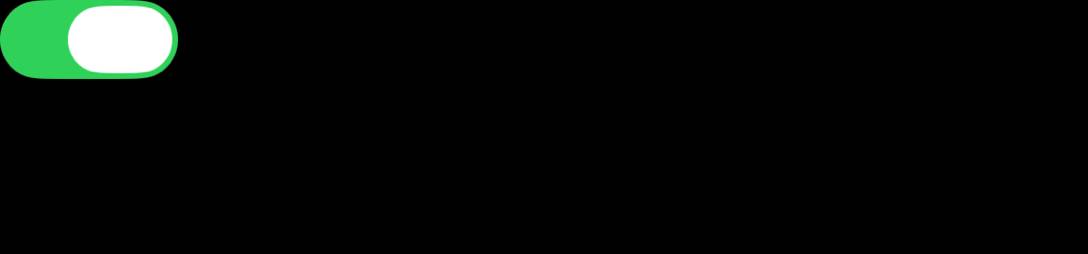

  • Switch_selected_dark -- 95.45% fidelity (SSIM 0.9656) (no change)

    native Switch_selected_dark cn1 Switch_selected_dark
    Left: native widget. Right: Codename One render.

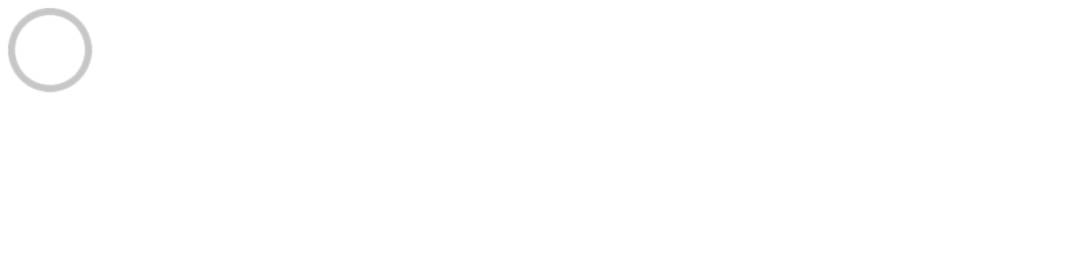

  • RadioButton_disabled_light -- 95.46% fidelity (SSIM 0.9657) (no change)

    native RadioButton_disabled_light cn1 RadioButton_disabled_light
    Left: native widget. Right: Codename One render.

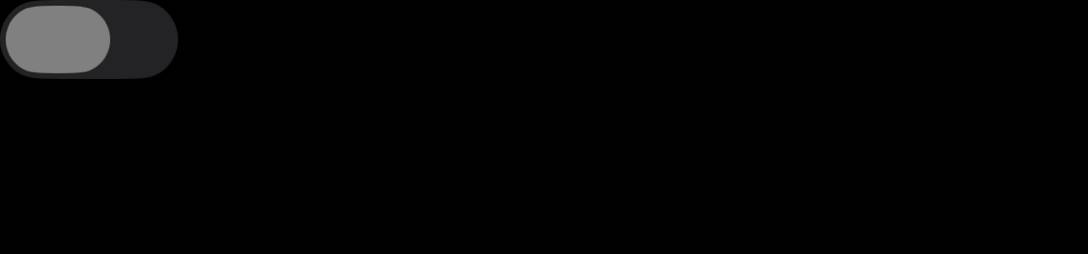

  • Switch_disabled_dark -- 95.57% fidelity (SSIM 0.9613) (no change)

    native Switch_disabled_dark cn1 Switch_disabled_dark
    Left: native widget. Right: Codename One render.

  • Dialog_normal_light -- 95.65% fidelity (SSIM 0.9300) (no change)

    native Dialog_normal_light cn1 Dialog_normal_light
    Left: native widget. Right: Codename One render.

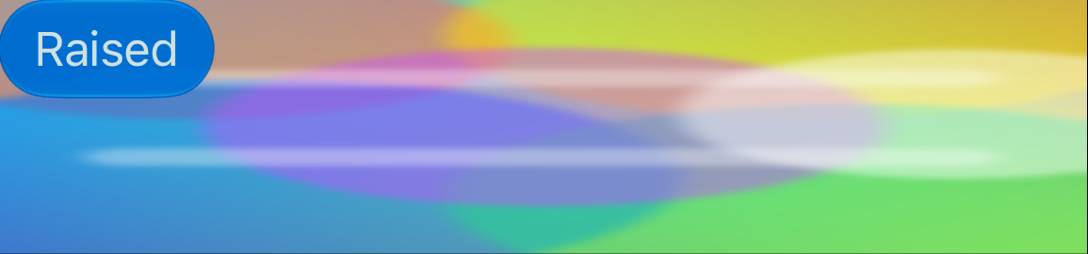

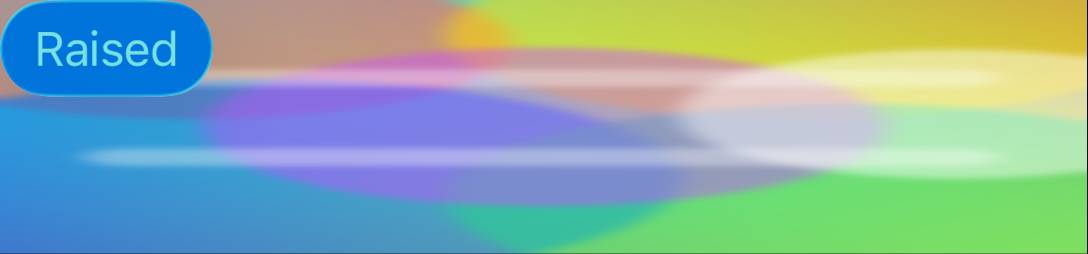

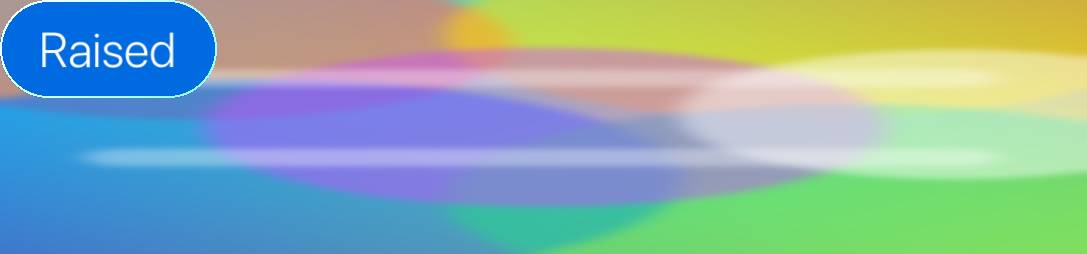

  • RaisedButton_pressed_light -- 95.78% fidelity (SSIM 0.9578) (no change)

    native RaisedButton_pressed_light cn1 RaisedButton_pressed_light
    Left: native widget. Right: Codename One render.

  • Button_normal_light -- 95.79% fidelity (SSIM 0.9528) (no change)

    native Button_normal_light cn1 Button_normal_light
    Left: native widget. Right: Codename One render.

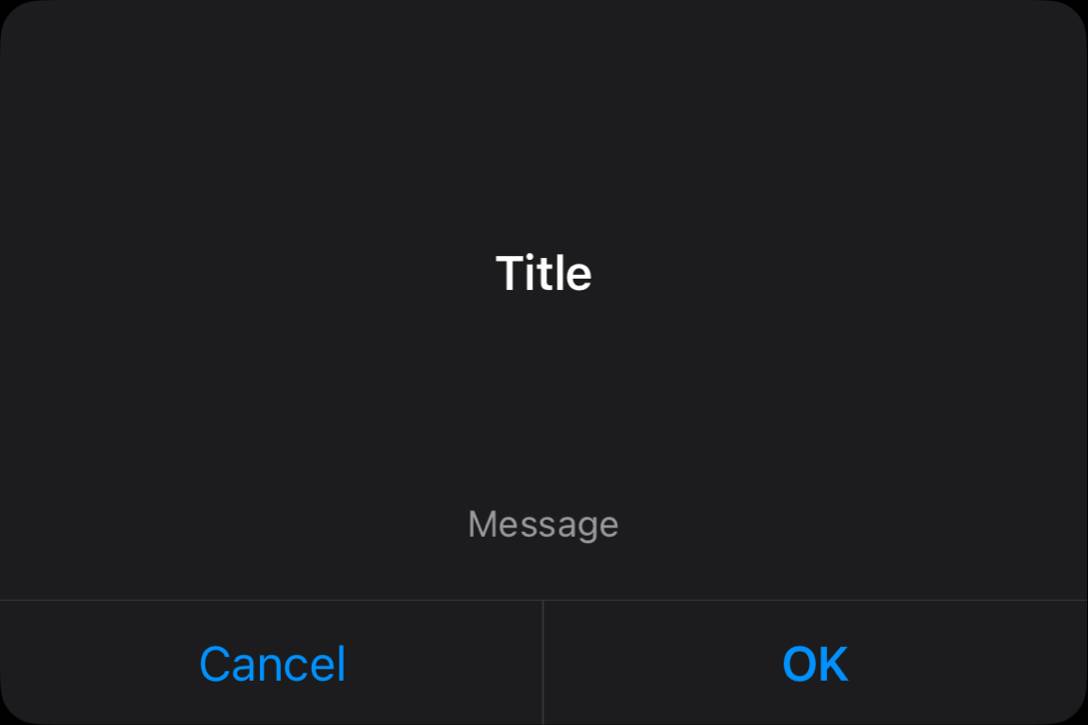

  • Dialog_normal_dark -- 95.79% fidelity (SSIM 0.9322) (no change)

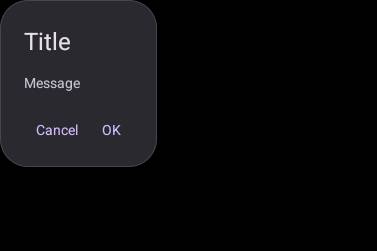

    native Dialog_normal_dark cn1 Dialog_normal_dark
    Left: native widget. Right: Codename One render.

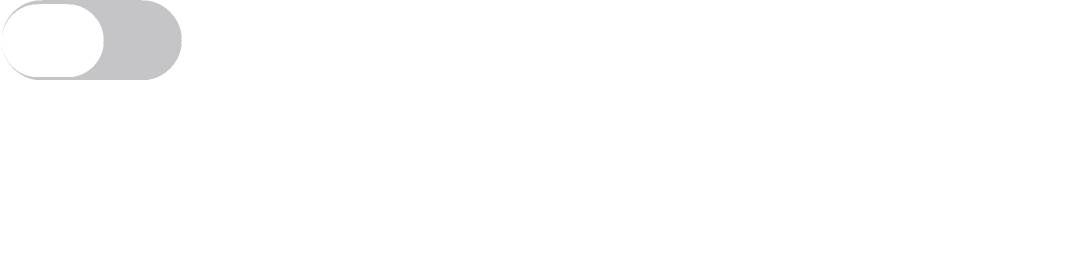

  • Switch_normal_light -- 95.97% fidelity (SSIM 0.9612) (no change)

    native Switch_normal_light cn1 Switch_normal_light
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_normal_light -- 96.09% fidelity (SSIM 0.9367) (no change)

    native FloatingActionButton_normal_light cn1 FloatingActionButton_normal_light
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_pressed_dark -- 96.16% fidelity (SSIM 0.9513) (no change)

    native FloatingActionButton_pressed_dark cn1 FloatingActionButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • Switch_normal_dark -- 96.17% fidelity (SSIM 0.9616) (no change)

    native Switch_normal_dark cn1 Switch_normal_dark
    Left: native widget. Right: Codename One render.

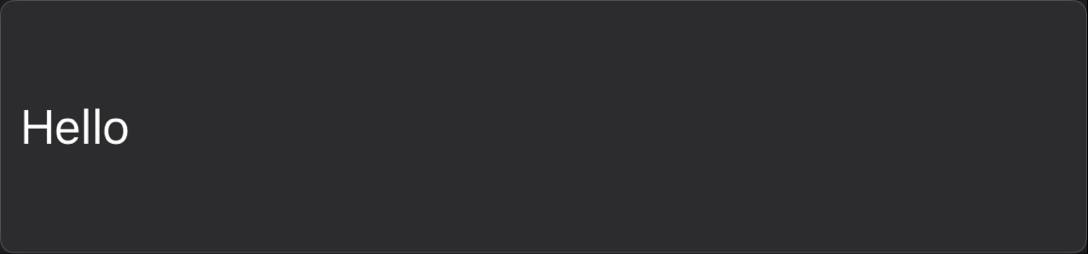

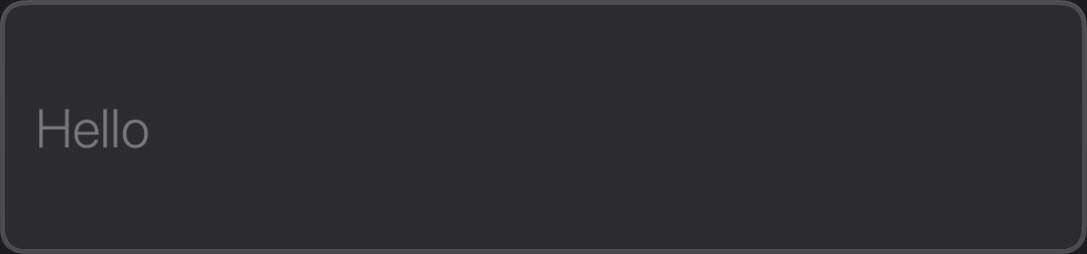

  • TextField_disabled_dark -- 96.21% fidelity (SSIM 0.9648) (no change)

    native TextField_disabled_dark cn1 TextField_disabled_dark
    Left: native widget. Right: Codename One render.

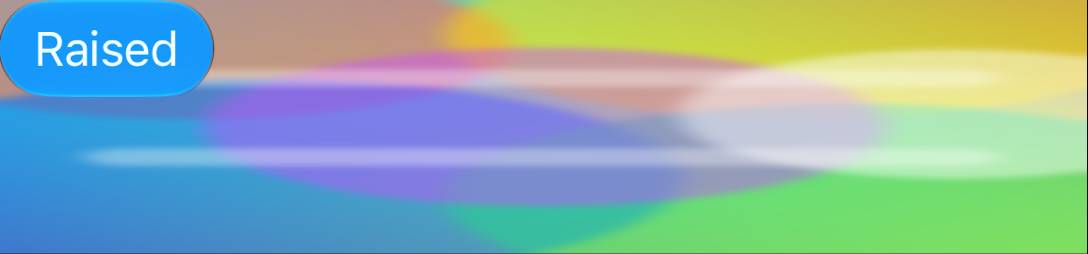

  • RaisedButton_normal_dark -- 96.41% fidelity (SSIM 0.9516) (no change)

    native RaisedButton_normal_dark cn1 RaisedButton_normal_dark
    Left: native widget. Right: Codename One render.

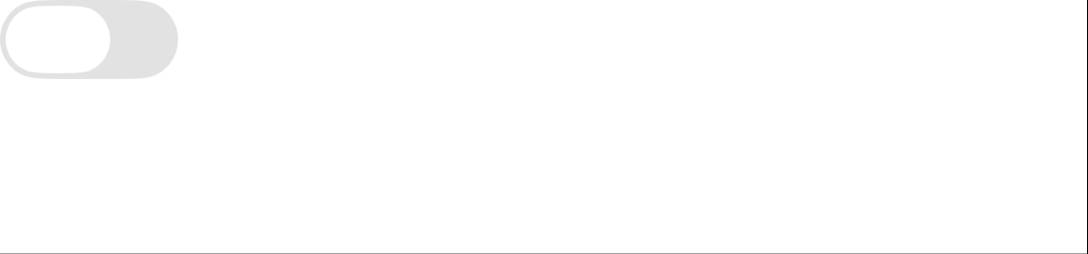

  • Switch_disabled_light -- 96.43% fidelity (SSIM 0.9698) (no change)

    native Switch_disabled_light cn1 Switch_disabled_light
    Left: native widget. Right: Codename One render.

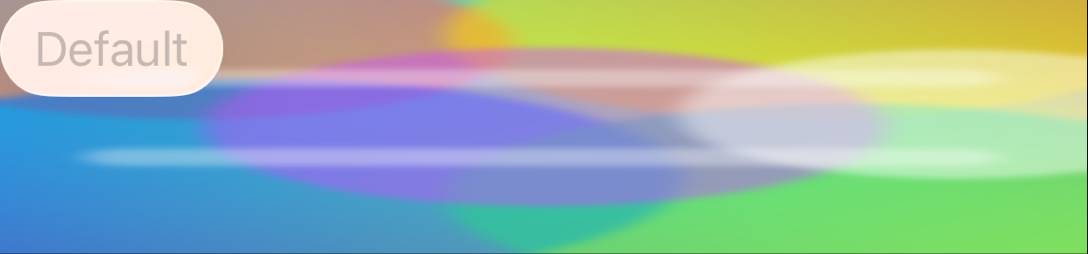

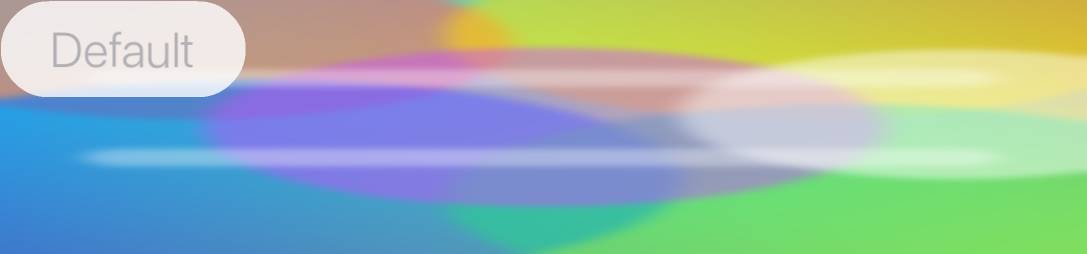

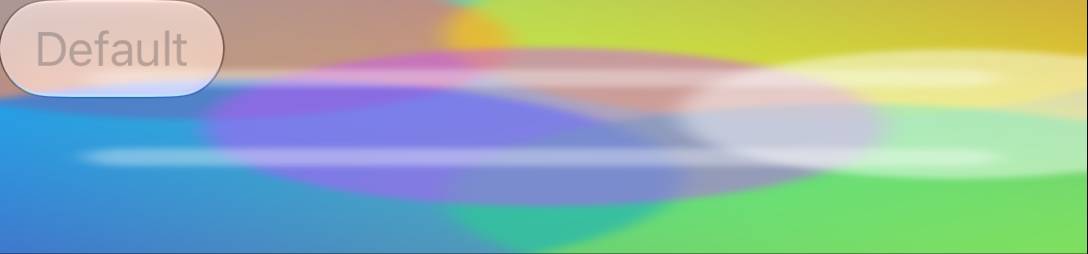

  • Button_disabled_light -- 96.80% fidelity (SSIM 0.9596) (no change)

    native Button_disabled_light cn1 Button_disabled_light
    Left: native widget. Right: Codename One render.

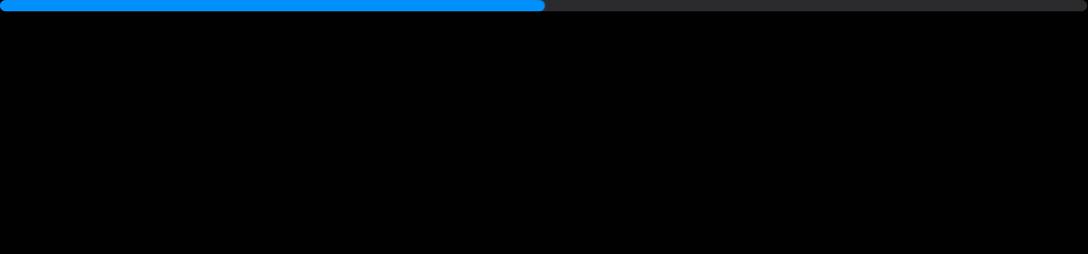

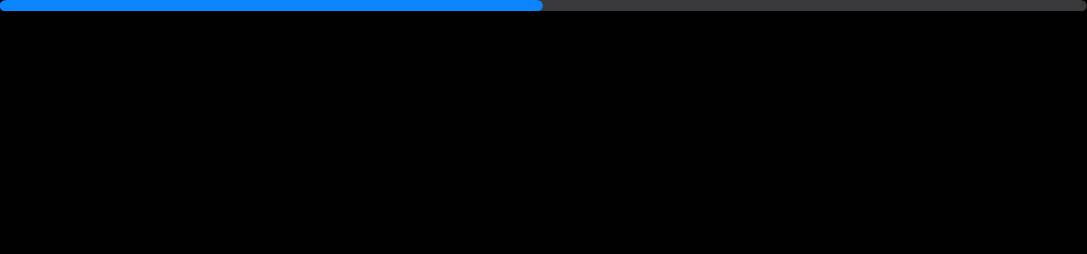

  • ProgressBar_normal_dark -- 96.91% fidelity (SSIM 0.9669) (no change)

    native ProgressBar_normal_dark cn1 ProgressBar_normal_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_dark -- 97.02% fidelity (SSIM 0.9549) (no change)

    native RaisedButton_disabled_dark cn1 RaisedButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_normal_dark -- 97.07% fidelity (SSIM 0.9521) (no change)

    native FloatingActionButton_normal_dark cn1 FloatingActionButton_normal_dark
    Left: native widget. Right: Codename One render.

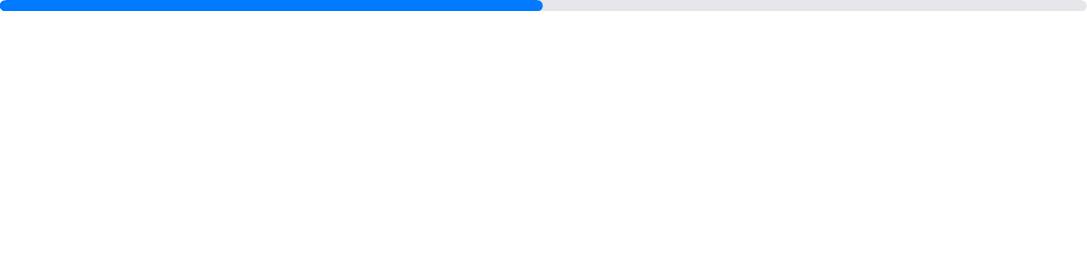

  • ProgressBar_normal_light -- 97.26% fidelity (SSIM 0.9739) (no change)

    native ProgressBar_normal_light cn1 ProgressBar_normal_light
    Left: native widget. Right: Codename One render.

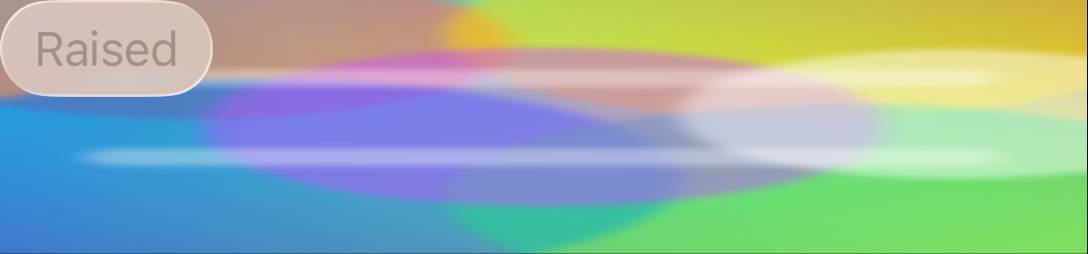

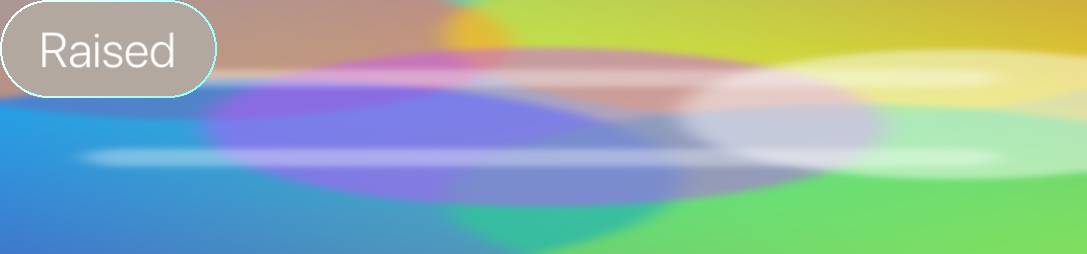

  • RaisedButton_disabled_light -- 97.26% fidelity (SSIM 0.9611) (no change)

    native RaisedButton_disabled_light cn1 RaisedButton_disabled_light
    Left: native widget. Right: Codename One render.

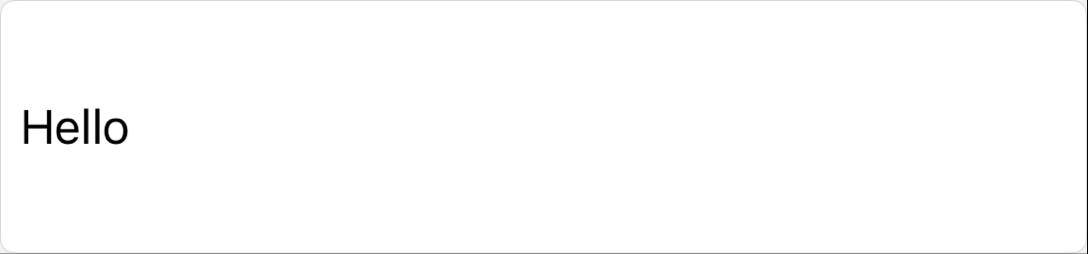

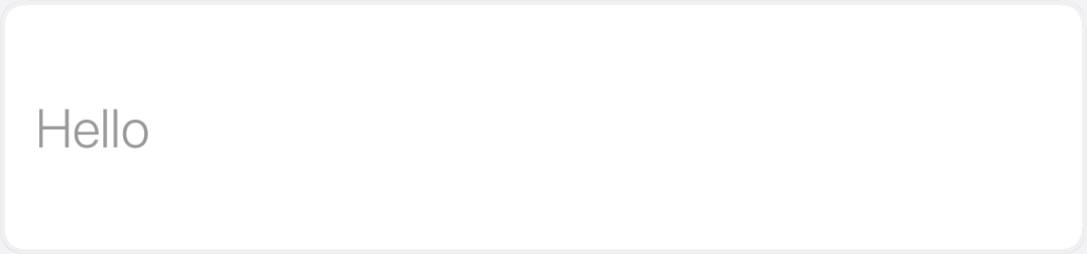

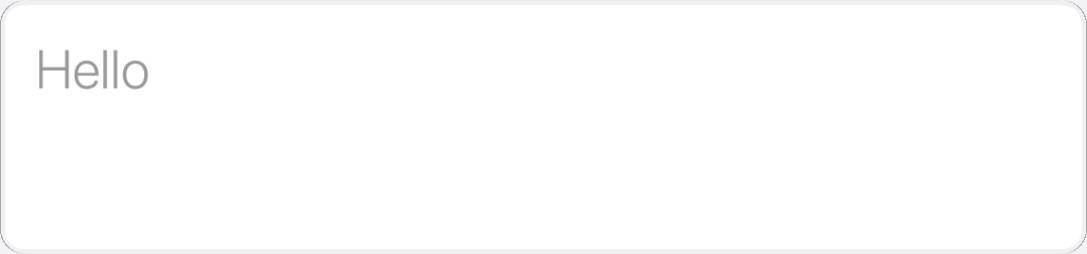

  • TextField_disabled_light -- 97.29% fidelity (SSIM 0.9649) (no change)

    native TextField_disabled_light cn1 TextField_disabled_light
    Left: native widget. Right: Codename One render.

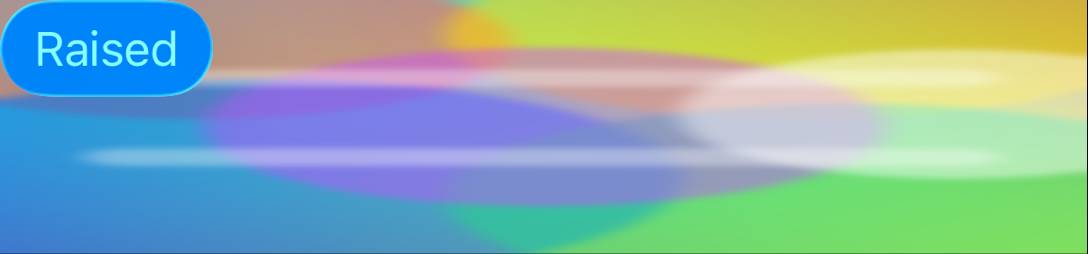

  • RaisedButton_normal_light -- 97.32% fidelity (SSIM 0.9613) (no change)

    native RaisedButton_normal_light cn1 RaisedButton_normal_light
    Left: native widget. Right: Codename One render.

  • TextField_normal_dark -- 97.61% fidelity (SSIM 0.9583) (no change)

    native TextField_normal_dark cn1 TextField_normal_dark
    Left: native widget. Right: Codename One render.

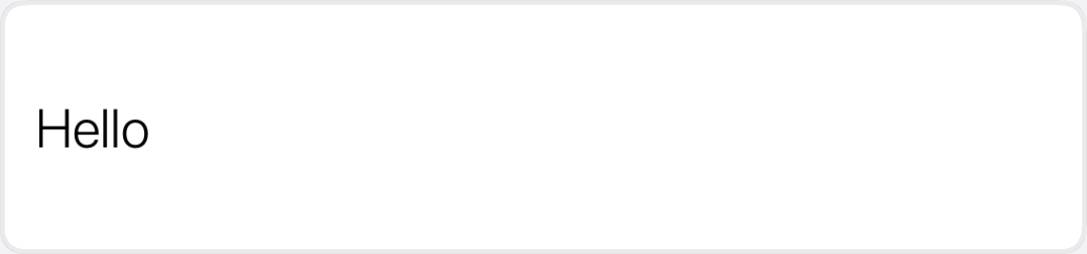

  • TextField_normal_light -- 97.62% fidelity (SSIM 0.9582) (no change)

    native TextField_normal_light cn1 TextField_normal_light
    Left: native widget. Right: Codename One render.

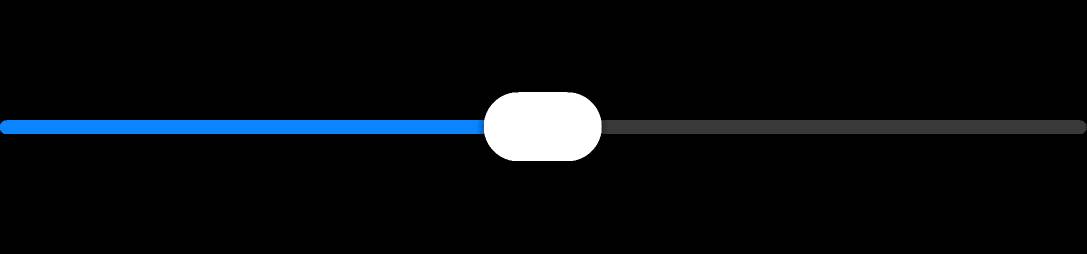

  • Slider_normal_dark -- 98.39% fidelity (SSIM 0.9900) (no change)

    native Slider_normal_dark cn1 Slider_normal_dark
    Left: native widget. Right: Codename One render.

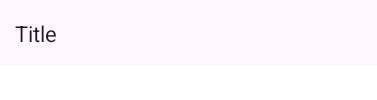

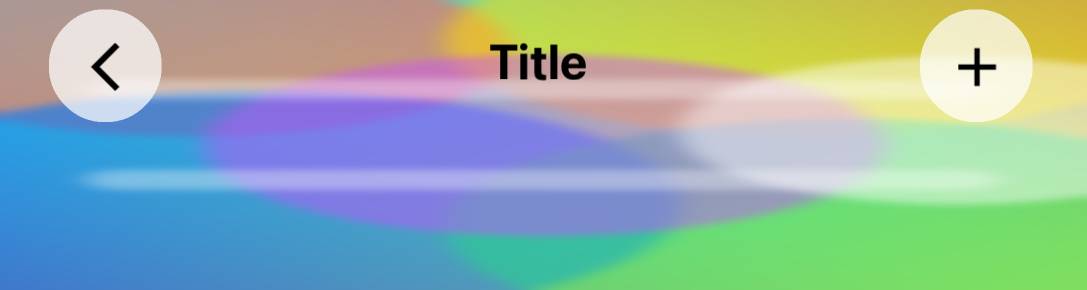

  • Toolbar_normal_light -- 98.69% fidelity (SSIM 0.9739) (no change)

    native Toolbar_normal_light cn1 Toolbar_normal_light
    Left: native widget. Right: Codename One render.

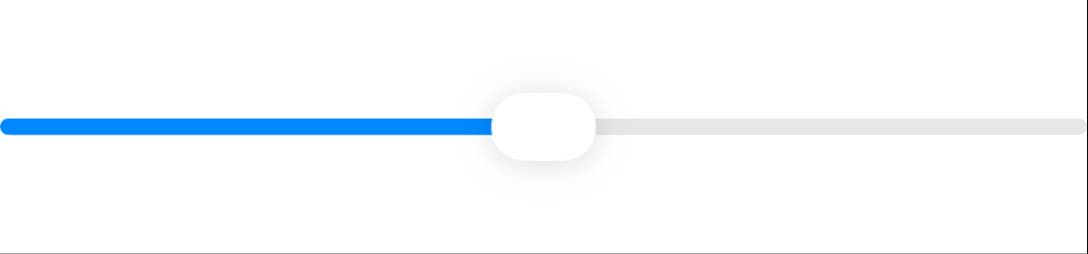

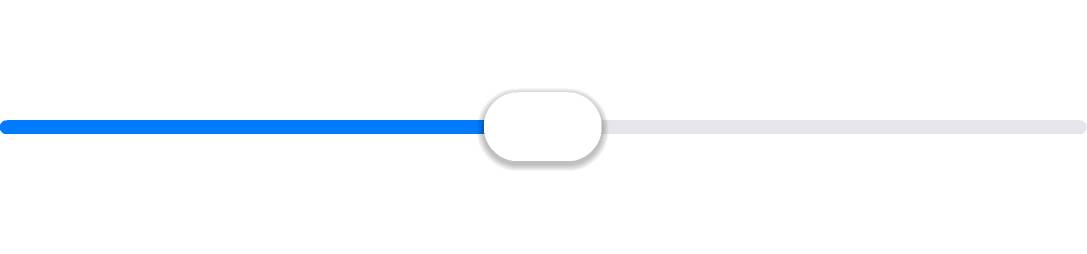

  • Slider_normal_light -- 98.95% fidelity (SSIM 0.9908) (no change)

    native Slider_normal_light cn1 Slider_normal_light
    Left: native widget. Right: Codename One render.

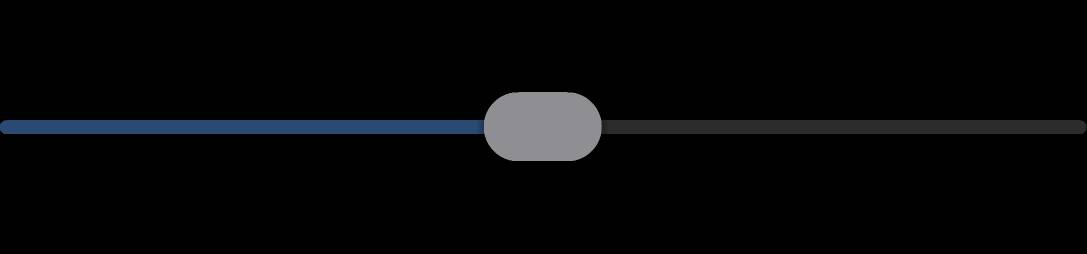

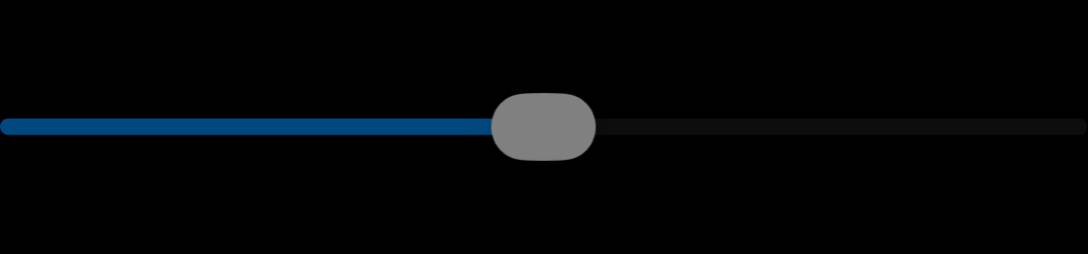

  • Slider_disabled_dark -- 99.56% fidelity (SSIM 0.9927) (no change)

    native Slider_disabled_dark cn1 Slider_disabled_dark
    Left: native widget. Right: Codename One render.

  • Slider_disabled_light -- 99.59% fidelity (SSIM 0.9932) (no change)

    native Slider_disabled_light cn1 Slider_disabled_light
    Left: native widget. Right: Codename One render.

@shai-almog @claude
macOS Separator: a rounding-safe margin/padding split, and score the …
3b38def
…row on macOS only

Margin and padding are rounded to pixels separately, so 0.57mm + 0.53mm grew
each side by a pixel at 72/120/168/216/264 dpi (a 1x Mac among them).
0.42mm + 0.64mm reproduces 1.1mm's pixels at every 24 dpi step from 72 to 288
and still gives AppKit's 2pt of padding at 1x, 96 dpi and 2x.

DesktopSeparator gets platforms: macos: on Fluent and Adwaita both sides are
empty after the edge trim, and a baseline refresh would record that
meaningless score.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@shai-almog

shai-almog commented Oct 16, 2026

Copy link
Copy Markdown
Collaborator Author

@codex review

@chatgpt-codex-connector

chatgpt-codex-connector Bot commented Oct 16, 2026

Copy link
Copy Markdown

Codex Review: Didn't find any major issues. Nice work!

Reviewed commit: 3b38def84e

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

  • Open a pull request for review
  • Mark a draft as ready
  • Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

@github-actions

github-actions Bot commented Oct 16, 2026

Copy link
Copy Markdown
Contributor

✅ Continuous Quality Report

Test & Coverage

Static Analysis

  • SpotBugs [Report archive]
    • ✅ ByteCodeTranslator: 0 findings (no issues)
    • ✅ android: 0 findings (no issues)
    • ✅ android-compat: 0 findings (no issues)
    • ✅ android-res-compiler: 0 findings (no issues)
    • ✅ backend: 0 findings (no issues)
    • ✅ backend-test: 0 findings (no issues)
    • ✅ build-engine: 0 findings (no issues)
    • ✅ build-hint-catalog: 0 findings (no issues)
    • ✅ build-hint-tools: 0 findings (no issues)
    • ✅ codenameone-gradle-plugin: 0 findings (no issues)
    • ✅ codenameone-maven-plugin: 0 findings (no issues)
    • ✅ core-unittests: 0 findings (no issues)
    • ✅ ios: 0 findings (no issues)
    • ✅ javac: 0 findings (no issues)
    • ✅ project-model: 0 findings (no issues)
  • ✅ PMD: 0 findings (no issues) [Report archive]
  • ✅ Checkstyle: 0 findings (no issues) [Report archive]

Generated automatically by the PR CI workflow.

@shai-almog

shai-almog commented Oct 16, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Native fidelity (ios-27-metal)

68 pairs compared -- median 94.6%, worst 74.5% (Toolbar_normal_dark), 25th pct 91.7%, mean 93.3%.

Distribution -- >=99%: 0 | 95-99%: 31 | 90-95%: 25 | <90%: 12

Component State Appearance Material Fidelity SSIM mean delta vs base Geometry

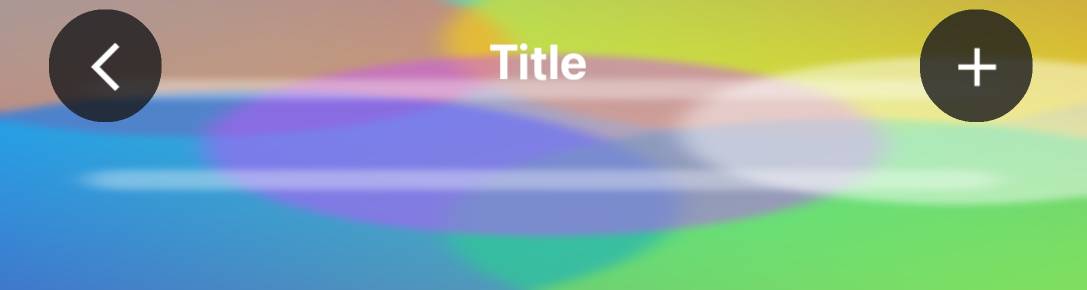

Toolbar normal dark glass 74.5% 0.930 7.16 0.0 ok
Button normal dark glass 79.3% 0.938 7.66 0.0 OFF (off 11px)
Button disabled dark glass 79.6% 0.942 7.41 0.0 OFF (off 11px)
RaisedButton disabled dark glass 81.2% 0.954 6.32 0.0 ok
Tabs normal dark glass 86.2% 0.900 6.73 +0.3 ok
Button pressed dark glass 86.3% 0.948 5.27 0.0 OFF (off 11px)
Tabs normal light glass 86.4% 0.895 7.61 +0.3 ok
TextField normal light normal 86.5% 0.950 3.38 0.0 ok
Toolbar normal light glass 86.9% 0.949 3.85 0.0 ok
TextField disabled light normal 89.4% 0.954 2.56 0.0 ok
Button normal light glass 89.5% 0.959 4.54 0.0 OFF (off 11px)
Button pressed light glass 89.5% 0.959 4.33 0.0 OFF (off 11px)
Spinner normal dark normal 90.7% 0.880 3.47 0.0 ok
FlatButton normal dark glass 90.9% 0.981 2.38 0.0 ok
Button disabled light glass 91.6% 0.962 3.21 0.0 OFF (off 11px)
Spinner normal light normal 91.6% 0.910 4.20 0.0 ok
CheckBox normal light normal 91.7% 0.994 0.72 0.0 ok
RadioButton normal light normal 91.7% 0.994 0.72 0.0 ok
Slider disabled dark normal 92.1% 0.943 2.45 0.0 ok
Switch selected light normal 92.1% 0.981 1.47 0.0 ok
CheckBox disabled light normal 92.3% 0.995 0.52 0.0 ok
RadioButton disabled light normal 92.3% 0.995 0.52 0.0 ok
FlatButton pressed dark glass 92.4% 0.982 1.37 0.0 ok
RaisedButton disabled light glass 92.4% 0.960 2.43 0.0 ok
Slider normal dark normal 92.5% 0.944 2.63 0.0 ok

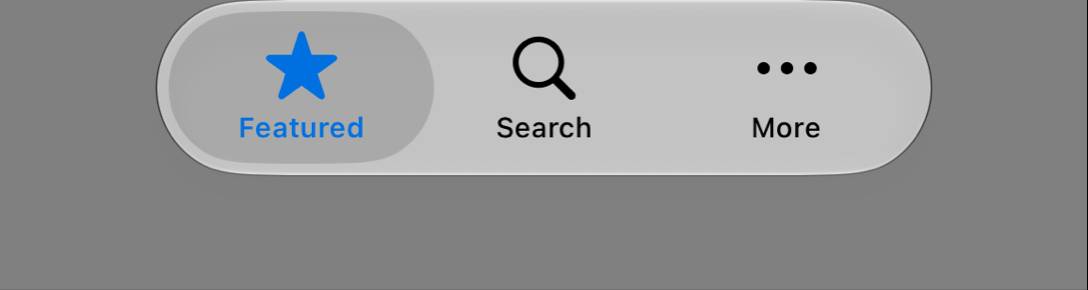

TabsGeom normal light normal 93.1% 0.885 6.48 +0.1 OFF (off 6px)
FlatButton pressed light glass 93.3% 0.981 1.90 0.0 ok

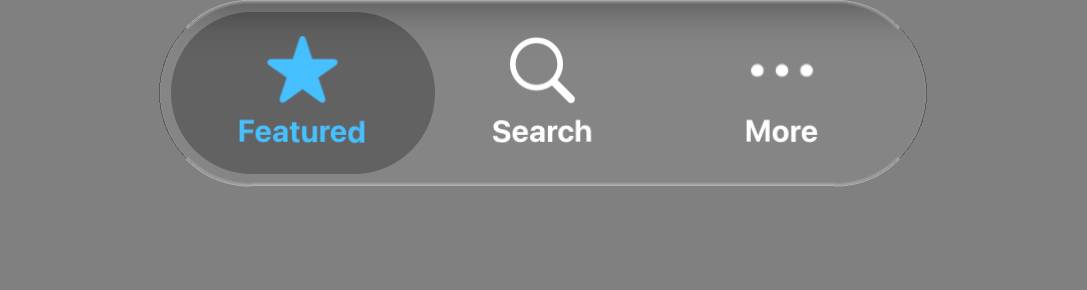

TabsGeom normal dark normal 93.8% 0.893 4.47 +0.1 ok
FlatButton normal light glass 93.9% 0.981 1.88 0.0 ok
Slider disabled light normal 94.0% 0.963 1.75 0.0 OFF (h 4.50)
RaisedButton pressed dark glass 94.1% 0.966 2.29 0.0 ok
RaisedButton normal dark glass 94.1% 0.966 2.32 0.0 ok
RadioButton selected light normal 94.3% 0.990 0.95 0.0 ok
RaisedButton pressed light glass 94.5% 0.963 2.16 0.0 ok

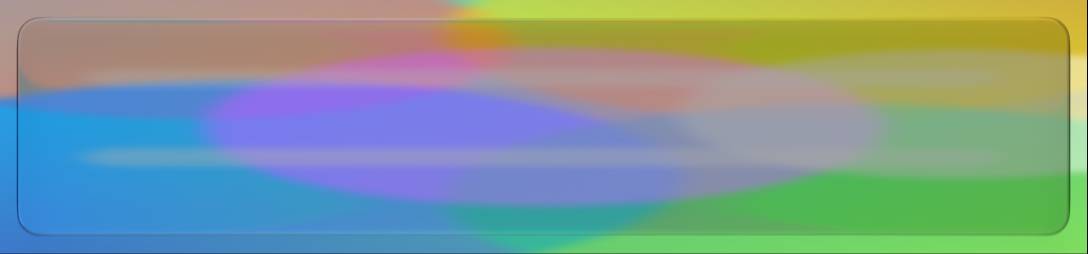

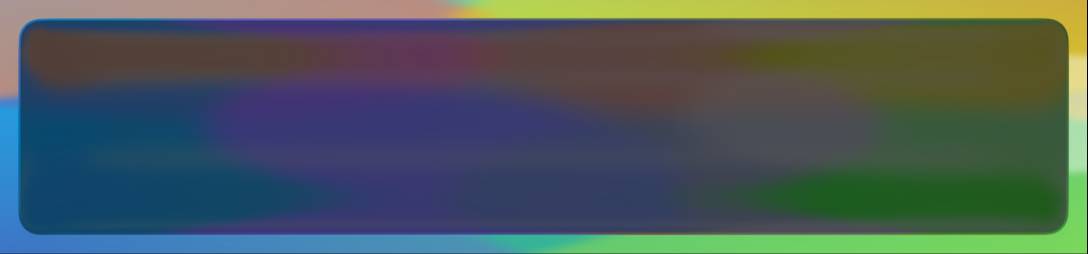

GlassPanelPhoto normal dark glass 94.6% 0.951 13.16 0.0 ok
RaisedButton normal light glass 94.6% 0.963 2.17 0.0 ok

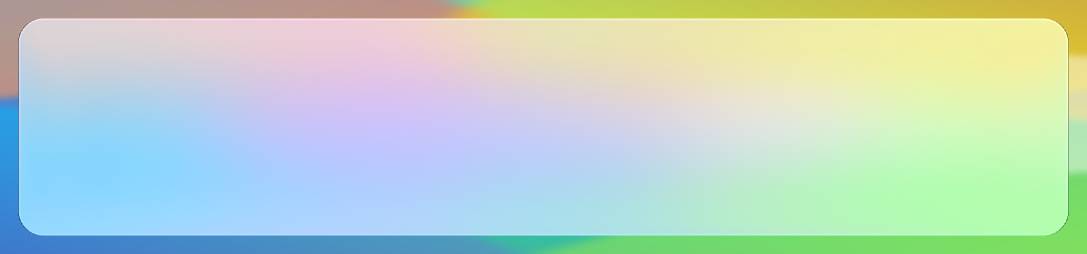

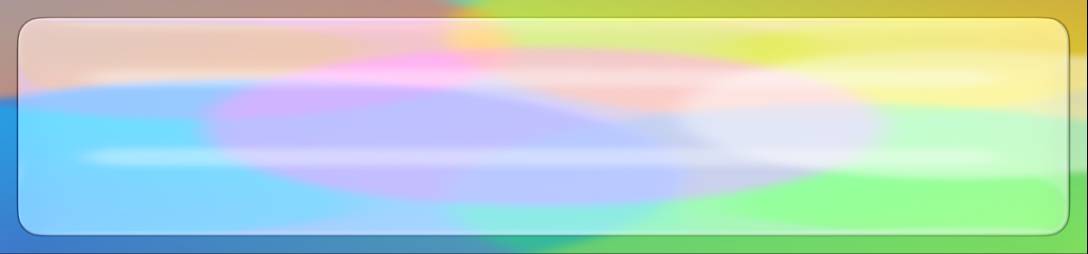

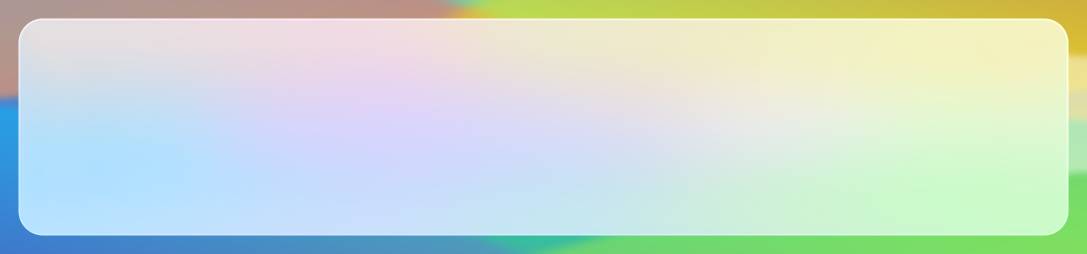

GlassPanelPhoto normal light glass 94.7% 0.951 11.57 0.0 ok
Slider normal light normal 95.1% 0.959 1.56 0.0 ok
CheckBox disabled dark normal 95.4% 0.992 0.25 0.0 ok
RadioButton disabled dark normal 95.4% 0.992 0.25 0.0 ok
Switch normal light normal 95.5% 0.986 0.70 0.0 ok
CheckBox selected light normal 95.8% 0.995 0.65 0.0 ok
CheckBox normal dark normal 95.8% 0.992 0.39 0.0 ok
RadioButton normal dark normal 95.8% 0.992 0.39 0.0 ok
Switch selected dark normal 95.9% 0.985 1.02 0.0 ok
TextField normal dark normal 96.0% 0.937 4.53 0.0 ok
RadioButton selected dark normal 96.1% 0.989 0.67 0.0 ok
Switch disabled light normal 96.4% 0.990 0.53 0.0 ok
TextField disabled dark normal 96.4% 0.940 3.39 0.0 ok
Switch normal dark normal 96.8% 0.986 0.82 0.0 ok

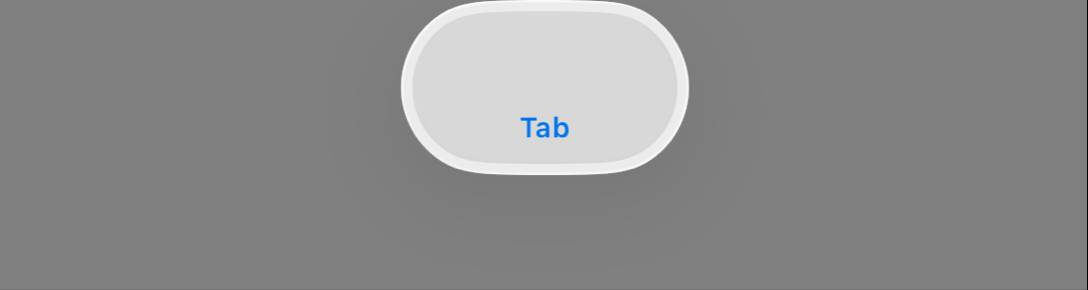

TabOne normal light normal 96.9% 0.948 2.57 0.0 OFF (off 6px, w 0.86)

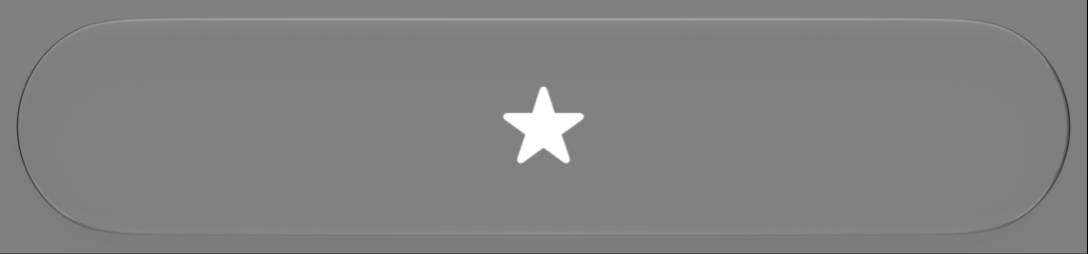

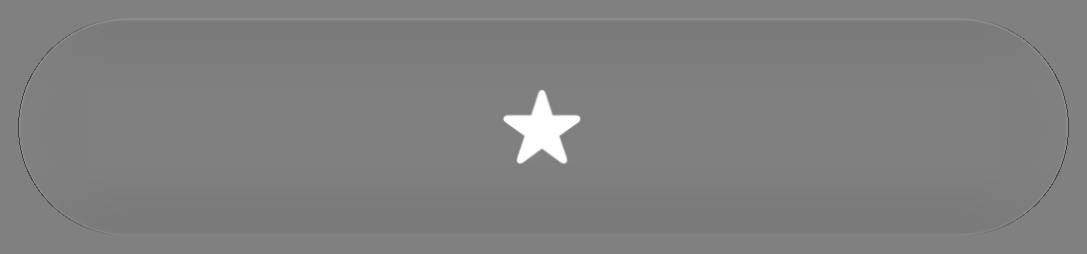

GlassIcon normal dark normal 97.2% 0.955 3.32 0.0 ok

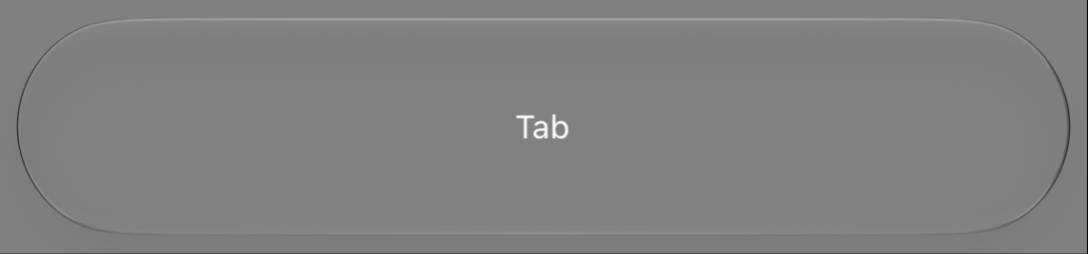

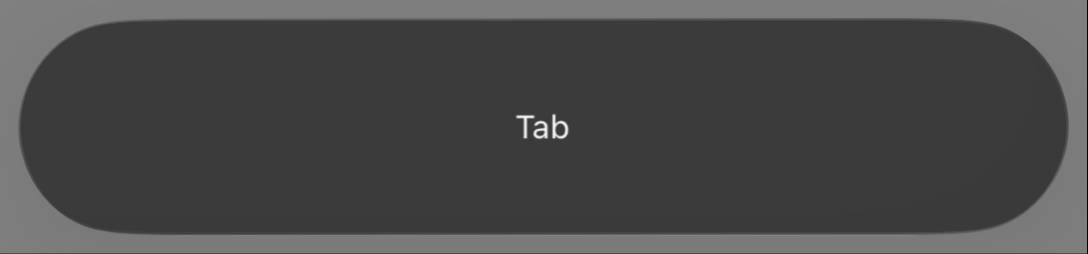

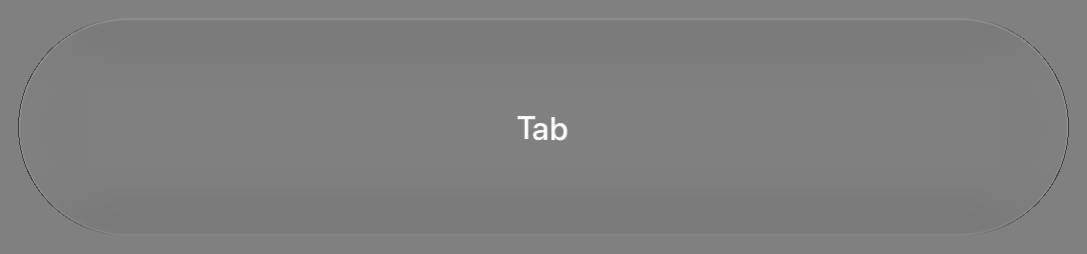

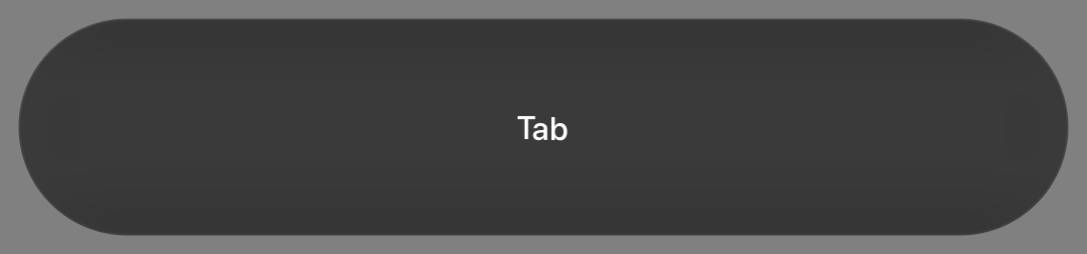

GlassText normal dark normal 97.3% 0.956 3.27 +0.1 ok
GlassPanelGrey normal dark normal 97.4% 0.959 3.41 0.0 ok

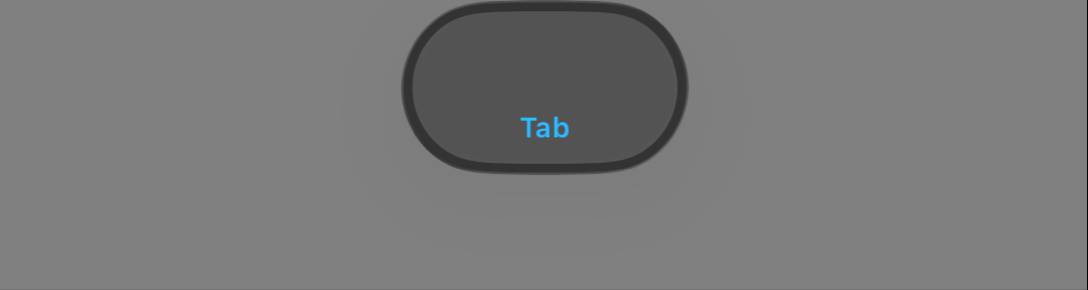

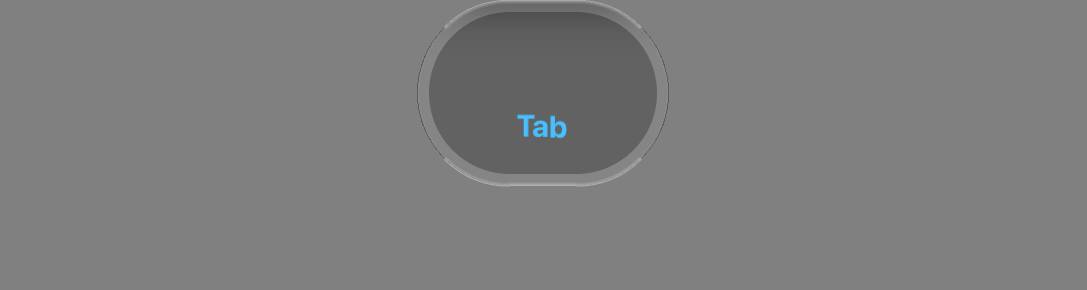

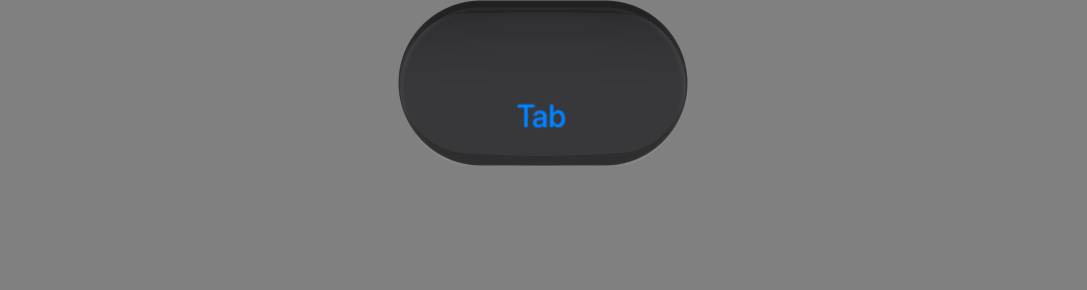

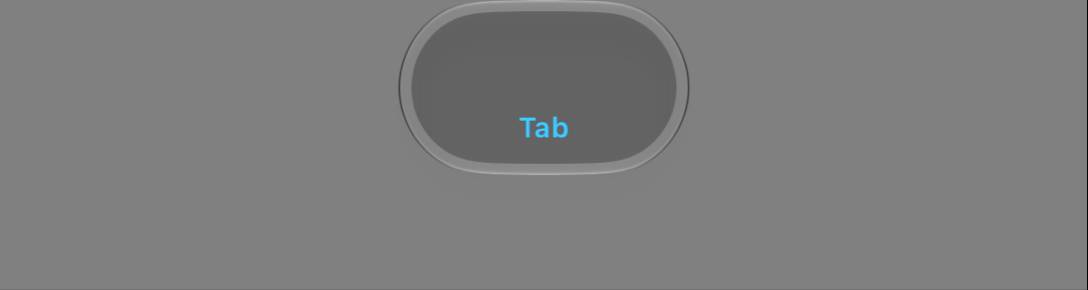

TabOne normal dark normal 97.4% 0.953 1.49 0.0 OFF (w 0.86)
ProgressBar normal dark normal 97.5% 0.997 0.60 0.0 ok
ProgressBar normal light normal 97.6% 0.999 0.61 0.0 ok

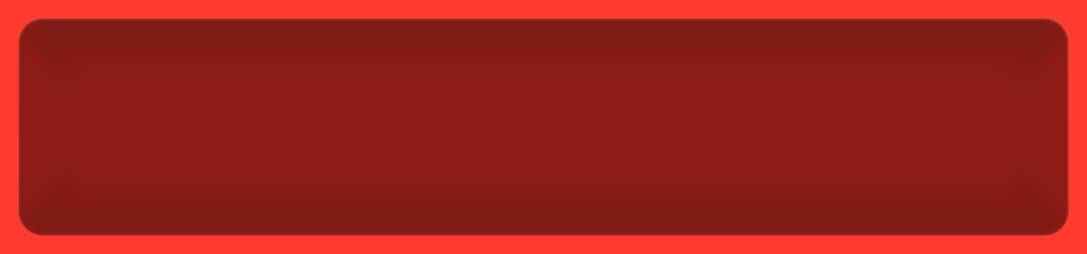

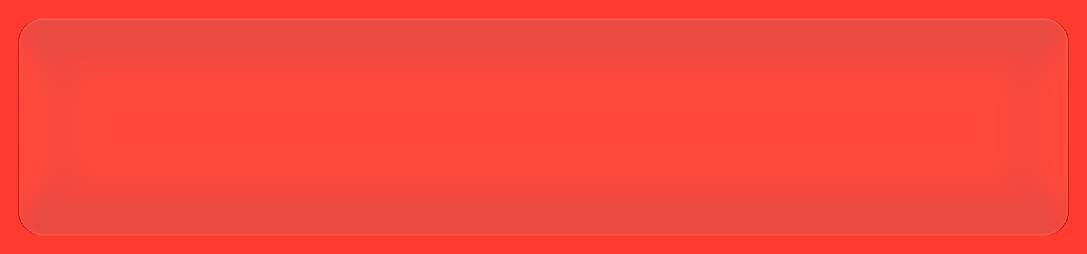

GlassPanelRed normal dark normal 97.7% 0.980 6.75 0.0 ok
CheckBox selected dark normal 97.9% 0.995 0.37 0.0 ok
Dialog normal dark normal 97.9% 0.961 1.38 0.0 ok

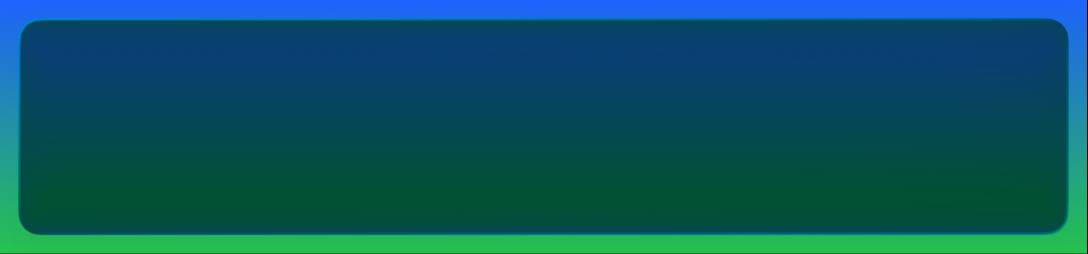

GlassPanelGrad normal dark normal 97.9% 0.975 4.86 0.0 ok
Dialog normal light normal 98.0% 0.963 1.42 0.0 ok
Switch disabled dark normal 98.0% 0.987 0.41 0.0 ok
GlassIcon normal light normal 98.2% 0.975 3.65 0.0 ok

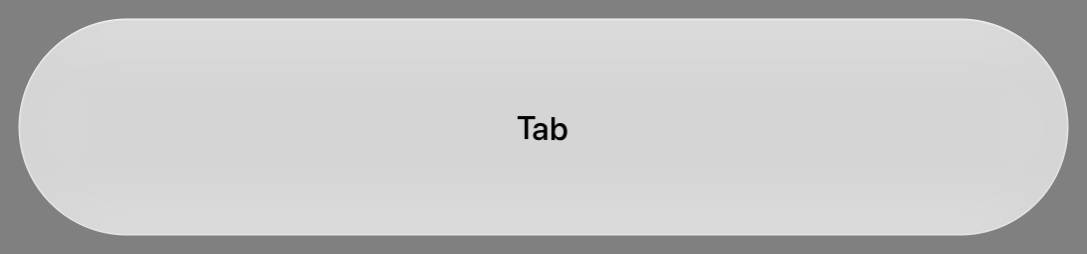

GlassText normal light normal 98.3% 0.978 3.58 +0.1 ok

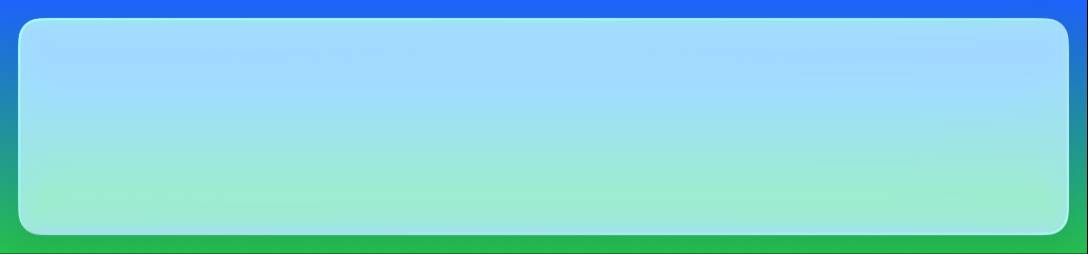

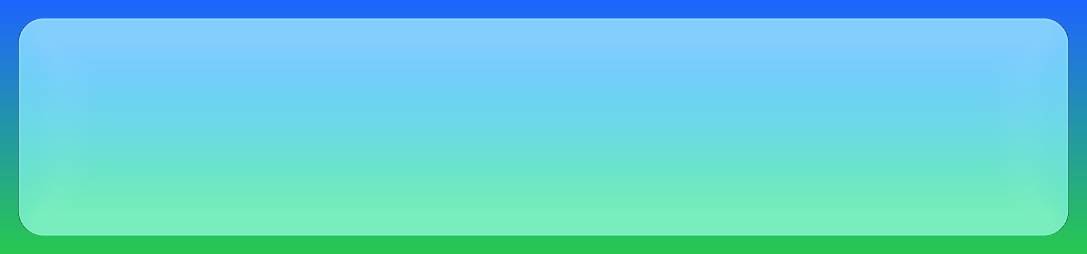

GlassPanelGrad normal light normal 98.4% 0.988 5.52 0.0 ok

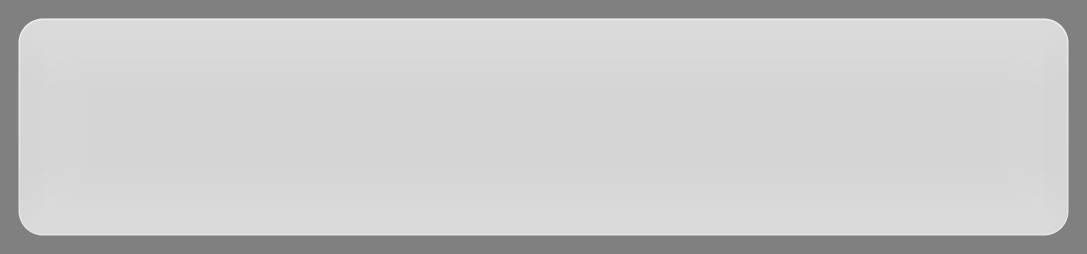

GlassPanelGrey normal light normal 98.7% 0.987 3.64 0.0 ok

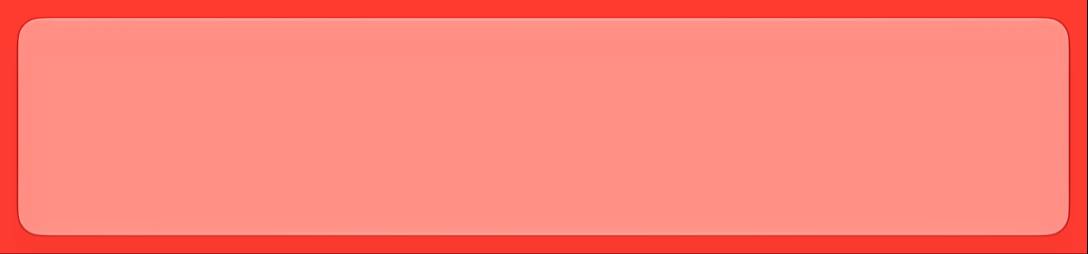

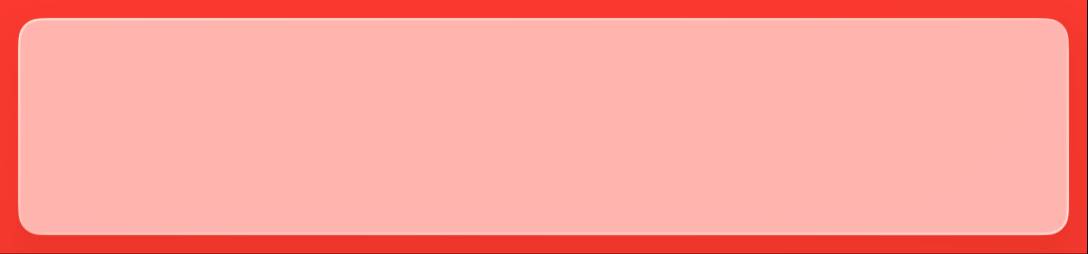

GlassPanelRed normal light normal 98.8% 0.990 4.14 0.0 ok
Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score
Component State Appearance bbox dx,dy (px) w ratio h ratio center off (px) radius native->cn1 (px)
Button normal dark +0,-6 1.094 1.067 10.9 90.5 -> 45.2
Button disabled dark +0,-6 1.094 1.067 10.9 92.0 -> 45.2
Button pressed dark +0,-6 1.094 1.080 10.8 79.4 -> 45.3
Button normal light +0,+0 1.094 1.000 10.5 45.7 -> 45.3
Button pressed light +0,+0 1.094 1.000 10.5 87.5 -> 45.4
Button disabled light +0,+0 1.094 1.000 10.5 49.1 -> 45.3
TabsGeom normal light +3,+0 0.990 1.069 6.1 79.8 -> 83.6

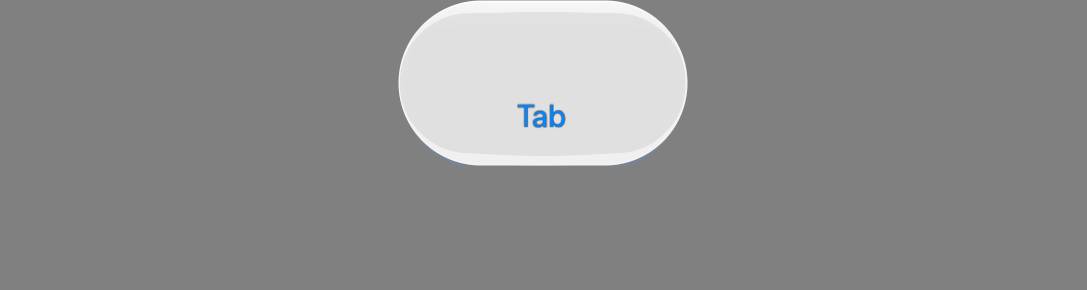

TabOne normal light +19,+0 0.863 1.069 6.1 80.9 -> 83.6

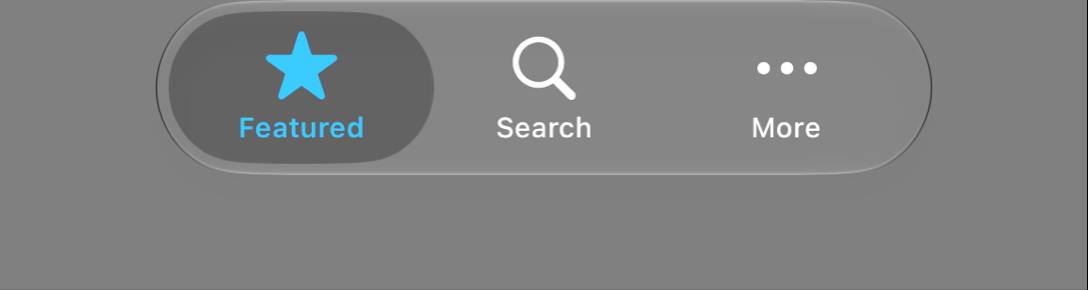

TabsGeom normal dark +3,+0 0.990 1.064 5.6 98.6 -> 99.1
TabOne normal dark +19,+0 0.863 1.064 5.6 95.2 -> 95.6
Tabs normal light +4,+0 0.988 1.064 5.5 85.9 -> 87.9
GlassIcon normal dark +1,+8 0.998 0.976 5.5 102.3 -> 102.4
GlassText normal dark +1,+8 0.998 0.976 5.5 102.3 -> 102.4
Tabs normal dark +4,+0 0.987 1.058 5.1 92.9 -> 93.7
Toolbar normal dark +6,-3 0.983 1.009 3.5 90.3 -> 55.5
Toolbar normal light +6,+7 0.984 0.926 3.2 70.9 -> 56.1
RaisedButton disabled dark +0,-6 1.009 1.079 2.7 89.6 -> 46.1
Switch selected light +0,+0 1.028 1.026 2.7 -
Slider disabled light +0,-29 1.000 4.500 2.5 -
Switch normal light +0,+0 1.023 1.013 2.1 -
Switch disabled light +0,+0 1.023 1.013 2.1 -
Switch normal dark +0,+0 1.023 1.013 2.1 -
Switch disabled dark +0,+0 1.023 1.013 2.1 -
Spinner normal light +11,-8 0.978 1.052 1.6 -
RaisedButton disabled light +0,+0 1.014 1.011 1.6 71.9 -> 96.6
FlatButton normal light +0,+0 0.980 1.011 1.6 86.2 -> 51.8
Switch selected dark +0,+0 1.017 1.013 1.6 -
Spinner normal dark +12,-8 0.977 1.052 1.5 -
CheckBox normal light +0,+0 0.977 0.977 1.4 -
RadioButton normal light +0,+0 0.977 0.977 1.4 -
RadioButton selected light +0,+0 0.977 0.977 1.4 -
CheckBox selected light +0,+0 0.977 0.977 1.4 -
CheckBox normal dark +0,+0 0.977 0.977 1.4 -
RadioButton normal dark +0,+0 0.977 0.977 1.4 -
RadioButton selected dark +0,+0 0.977 0.977 1.4 -
CheckBox selected dark +0,+0 0.977 0.977 1.4 -
FlatButton pressed light +1,+0 0.973 1.011 1.1 94.6 -> 65.6
RaisedButton pressed dark +0,+0 1.009 1.011 1.1 44.6 -> 44.3
RaisedButton normal dark +0,+0 1.009 1.011 1.1 44.5 -> 44.3
CheckBox disabled dark +1,+0 0.966 0.977 1.1 -
RadioButton disabled dark +1,+0 0.966 0.977 1.1 -
RaisedButton pressed light +0,+0 1.009 1.000 1.0 43.3 -> 44.3
RaisedButton normal light +0,+0 1.009 1.000 1.0 43.3 -> 44.1
FlatButton normal dark +4,+0 0.952 1.011 0.7 86.1 -> 95.7
FlatButton pressed dark +4,+0 0.952 1.011 0.7 94.7 -> 97.9

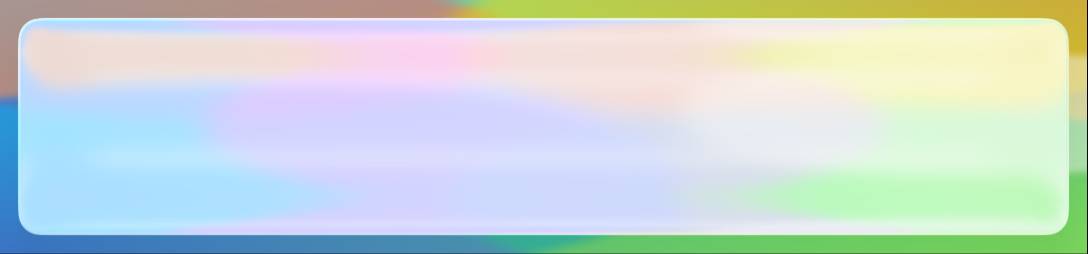

GlassPanelPhoto normal light +1,+1 0.997 0.995 0.7 35.1 -> 33.5

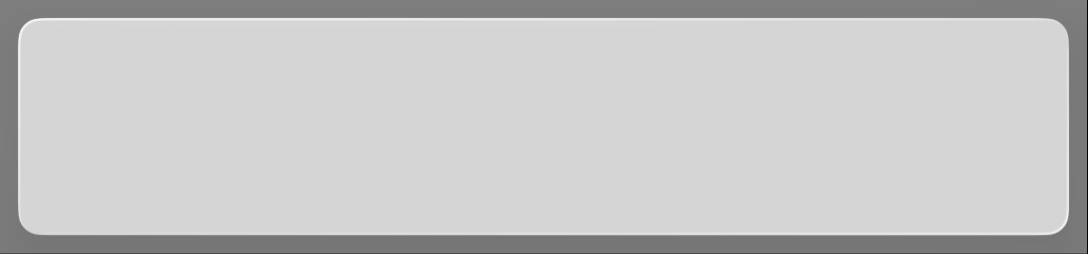

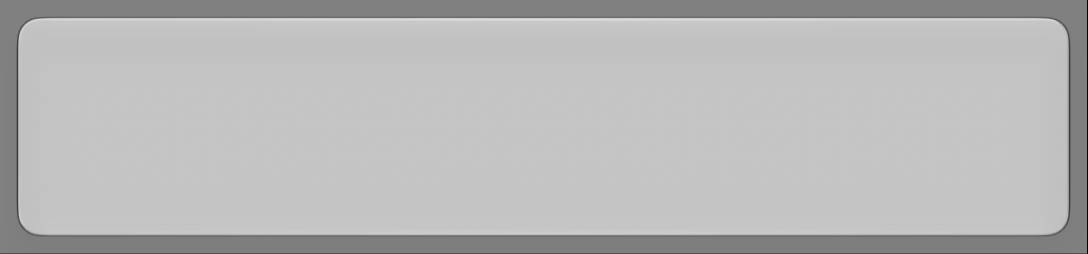

GlassPanelGrey normal light +1,+1 0.997 0.995 0.7 30.0 -> 27.4
Slider disabled dark +0,-1 1.000 1.015 0.5 -
CheckBox disabled light +1,+0 0.977 0.988 0.5 -
RadioButton disabled light +1,+0 0.977 0.988 0.5 -
Slider normal light +0,+1 1.000 0.964 0.5 -
GlassPanelGrey normal dark +1,+2 0.998 0.986 0.5 101.8 -> 102.4
ProgressBar normal dark +0,+0 1.000 0.900 0.5 -
ProgressBar normal light +0,+0 1.000 0.900 0.5 -

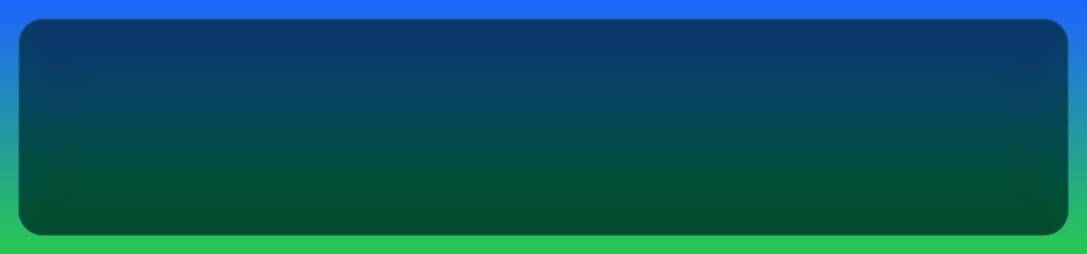

GlassPanelGrad normal dark +1,+0 0.998 0.995 0.5 102.0 -> 102.1
GlassIcon normal light +1,+0 0.998 1.005 0.5 91.7 -> 92.8

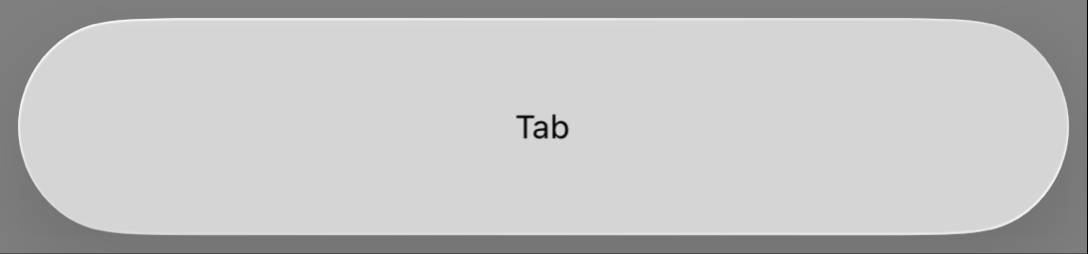

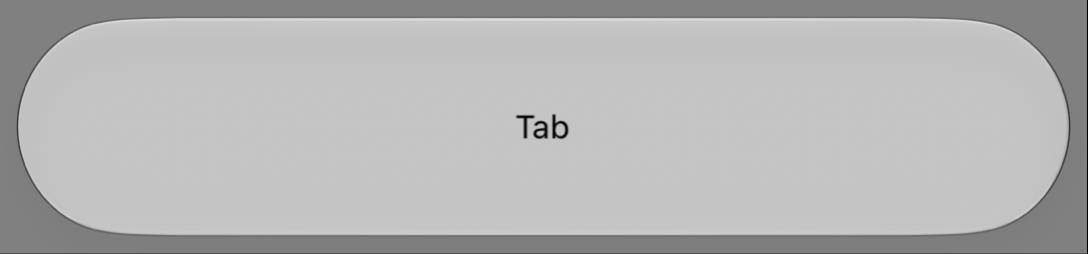

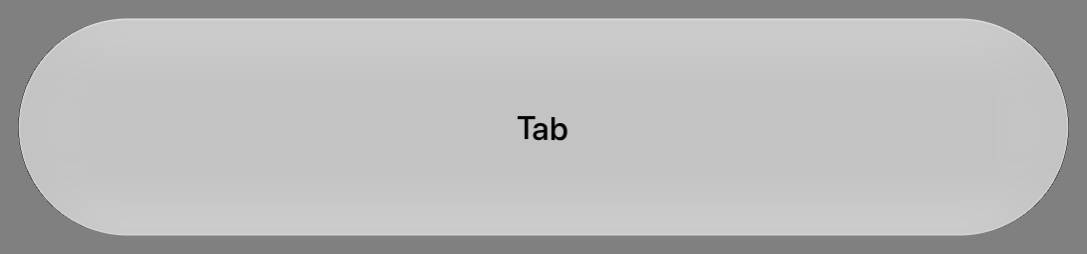

GlassText normal light +1,+0 0.998 1.005 0.5 91.7 -> 92.8

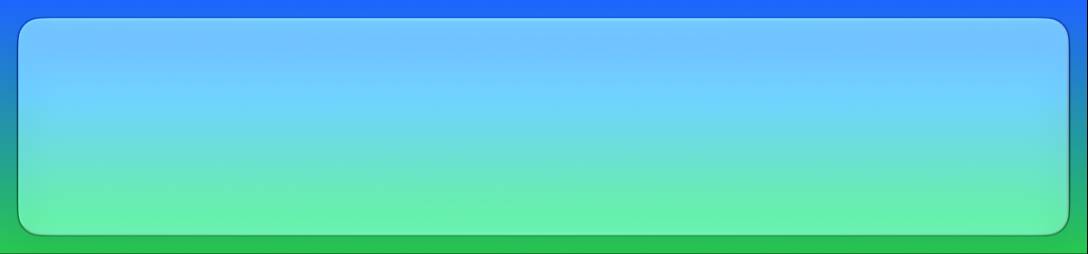

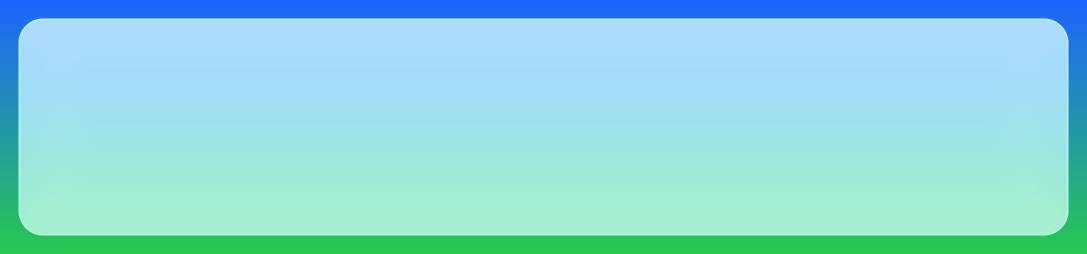

GlassPanelGrad normal light +1,+0 0.998 1.005 0.5 24.3 -> 26.8

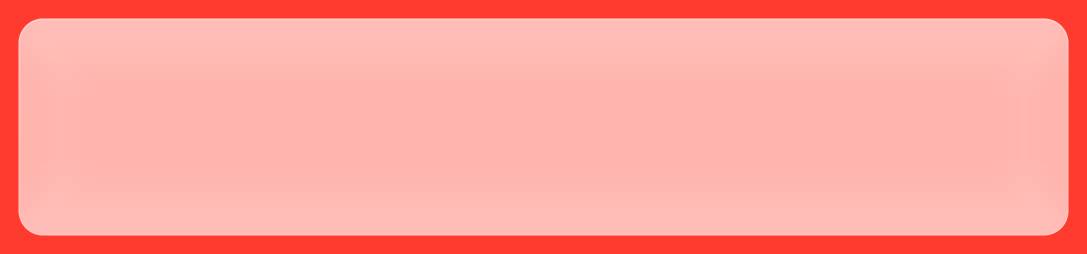

GlassPanelRed normal light +1,+0 0.998 1.005 0.5 24.4 -> 25.7
TextField normal light +0,+0 1.000 1.000 0.0 13.4 -> 40.0
TextField disabled light +0,+0 1.000 1.000 0.0 13.9 -> 40.4
Slider normal dark +0,+0 1.000 1.000 0.0 -

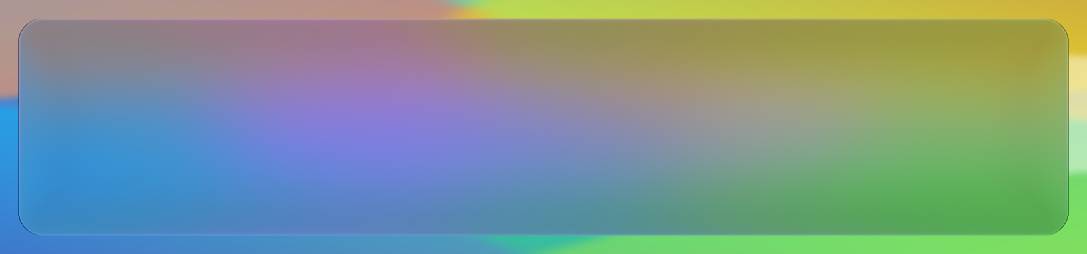

GlassPanelPhoto normal dark +2,+1 0.996 0.991 0.0 67.3 -> 67.5
TextField normal dark +0,+0 1.000 1.000 0.0 6.4 -> 15.1
TextField disabled dark +0,+0 1.000 1.000 0.0 6.4 -> 15.9

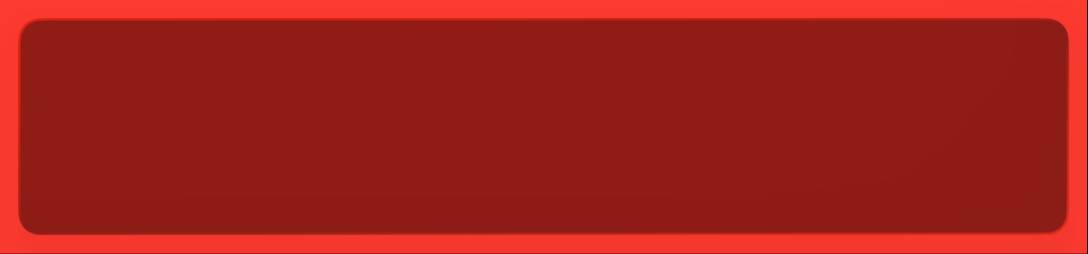

GlassPanelRed normal dark +1,-2 0.998 1.020 0.0 102.2 -> 102.5
Dialog normal dark +0,+0 1.000 1.000 0.0 -
Dialog normal light +0,+0 1.000 1.000 0.0 -

Side-by-side comparisons (worst first)

  • Toolbar_normal_dark -- 74.49% fidelity (SSIM 0.9295) (no change)

    native Toolbar_normal_dark cn1 Toolbar_normal_dark
    Left: native widget. Right: Codename One render.

  • Button_normal_dark -- 79.28% fidelity (SSIM 0.9380) (no change)

    native Button_normal_dark cn1 Button_normal_dark
    Left: native widget. Right: Codename One render.

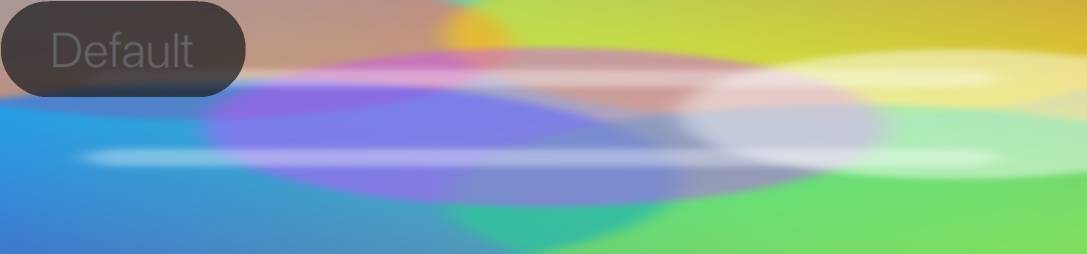

  • Button_disabled_dark -- 79.63% fidelity (SSIM 0.9423) (no change)

    native Button_disabled_dark cn1 Button_disabled_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_dark -- 81.15% fidelity (SSIM 0.9544) (no change)

    native RaisedButton_disabled_dark cn1 RaisedButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • Tabs_normal_dark -- 86.22% fidelity (SSIM 0.8999) (+0.33 vs baseline)

    native Tabs_normal_dark cn1 Tabs_normal_dark
    Left: native widget. Right: Codename One render.

  • Button_pressed_dark -- 86.28% fidelity (SSIM 0.9483) (no change)

    native Button_pressed_dark cn1 Button_pressed_dark
    Left: native widget. Right: Codename One render.

  • Tabs_normal_light -- 86.43% fidelity (SSIM 0.8954) (+0.31 vs baseline)

    native Tabs_normal_light cn1 Tabs_normal_light
    Left: native widget. Right: Codename One render.

  • TextField_normal_light -- 86.49% fidelity (SSIM 0.9502) (no change)

    native TextField_normal_light cn1 TextField_normal_light
    Left: native widget. Right: Codename One render.

  • Toolbar_normal_light -- 86.94% fidelity (SSIM 0.9488) (no change)

    native Toolbar_normal_light cn1 Toolbar_normal_light
    Left: native widget. Right: Codename One render.

  • TextField_disabled_light -- 89.39% fidelity (SSIM 0.9540) (no change)

    native TextField_disabled_light cn1 TextField_disabled_light
    Left: native widget. Right: Codename One render.

  • Button_normal_light -- 89.45% fidelity (SSIM 0.9588) (no change)

    native Button_normal_light cn1 Button_normal_light
    Left: native widget. Right: Codename One render.

  • Button_pressed_light -- 89.45% fidelity (SSIM 0.9588) (no change)

    native Button_pressed_light cn1 Button_pressed_light
    Left: native widget. Right: Codename One render.

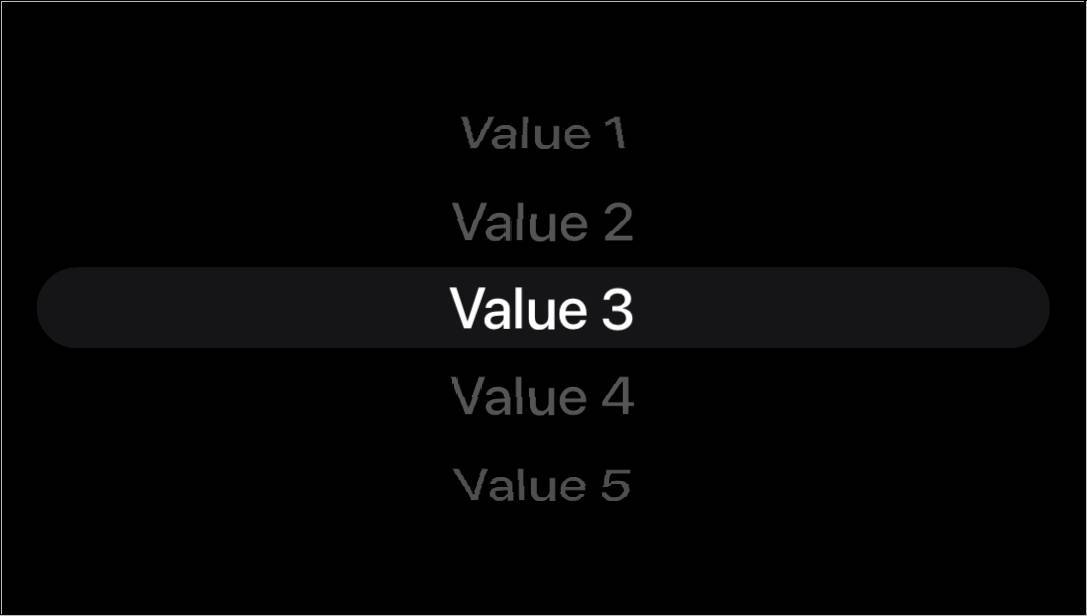

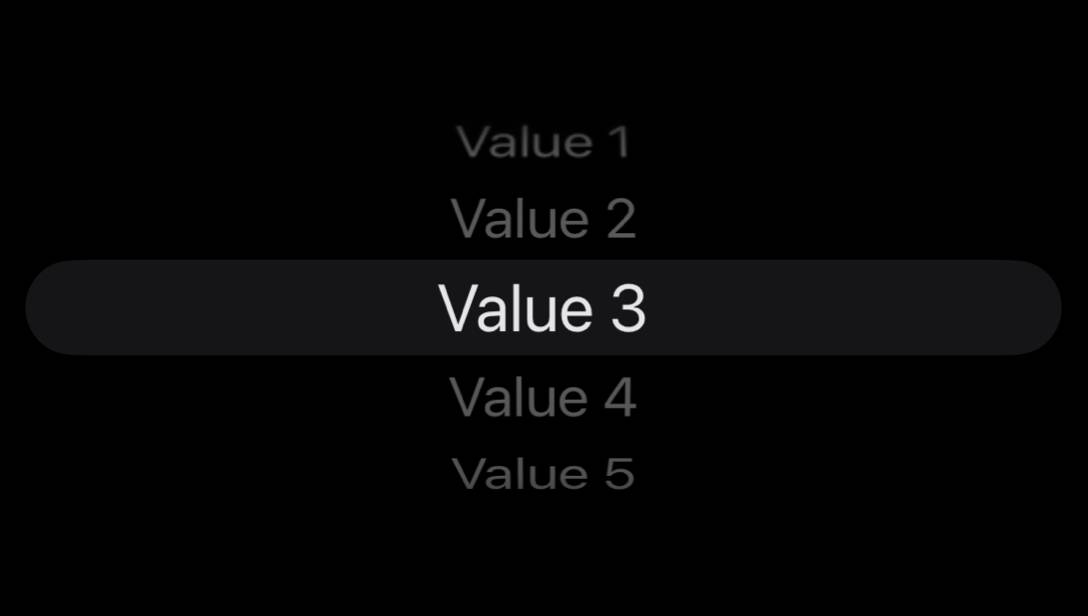

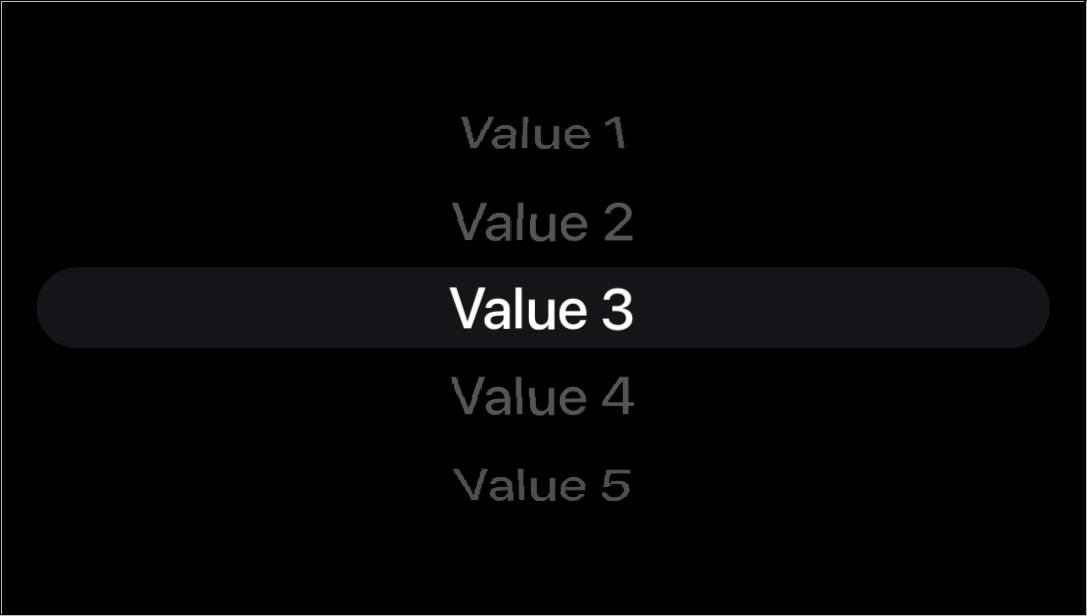

  • Spinner_normal_dark -- 90.72% fidelity (SSIM 0.8800) (no change)

    native Spinner_normal_dark cn1 Spinner_normal_dark
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_dark -- 90.88% fidelity (SSIM 0.9805) (no change)

    native FlatButton_normal_dark cn1 FlatButton_normal_dark
    Left: native widget. Right: Codename One render.

  • Button_disabled_light -- 91.57% fidelity (SSIM 0.9621) (no change)

    native Button_disabled_light cn1 Button_disabled_light
    Left: native widget. Right: Codename One render.

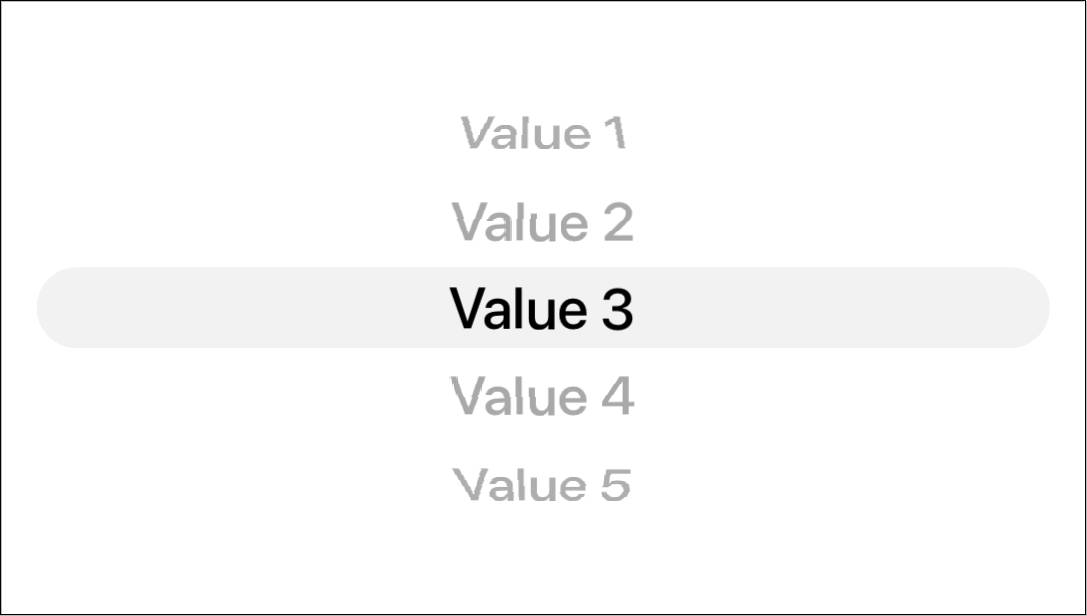

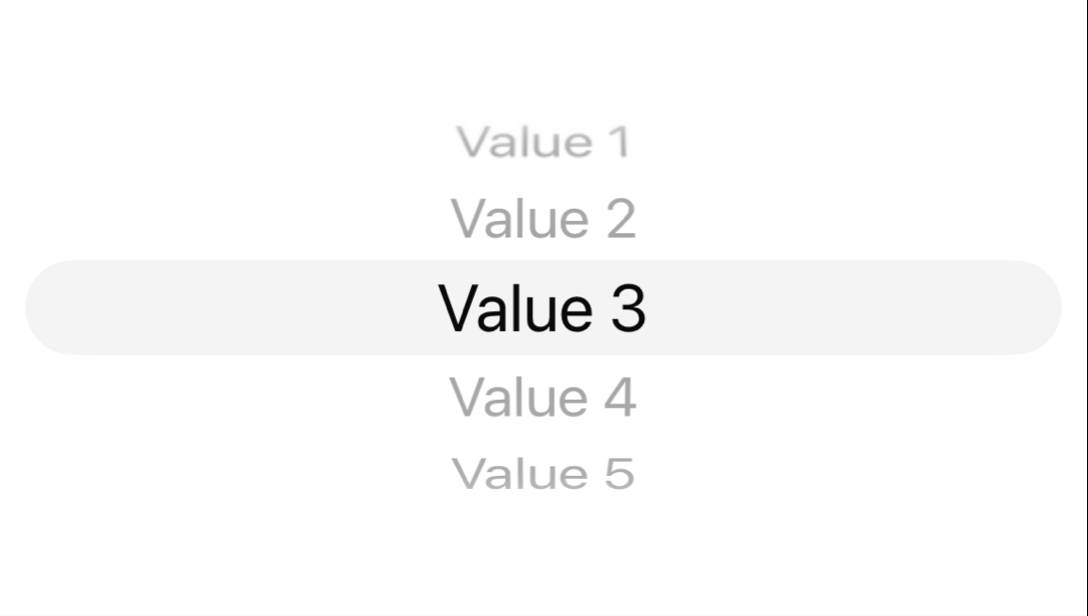

  • Spinner_normal_light -- 91.58% fidelity (SSIM 0.9097) (no change)

    native Spinner_normal_light cn1 Spinner_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

    native CheckBox_normal_light cn1 CheckBox_normal_light
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

    native RadioButton_normal_light cn1 RadioButton_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (no change)

    native Slider_disabled_dark cn1 Slider_disabled_dark
    Left: native widget. Right: Codename One render.

  • Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

    native Switch_selected_light cn1 Switch_selected_light
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

    native CheckBox_disabled_light cn1 CheckBox_disabled_light
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

    native RadioButton_disabled_light cn1 RadioButton_disabled_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_dark -- 92.38% fidelity (SSIM 0.9821) (no change)

    native FlatButton_pressed_dark cn1 FlatButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_light -- 92.40% fidelity (SSIM 0.9596) (no change)

    native RaisedButton_disabled_light cn1 RaisedButton_disabled_light
    Left: native widget. Right: Codename One render.

  • Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (no change)

    native Slider_normal_dark cn1 Slider_normal_dark
    Left: native widget. Right: Codename One render.

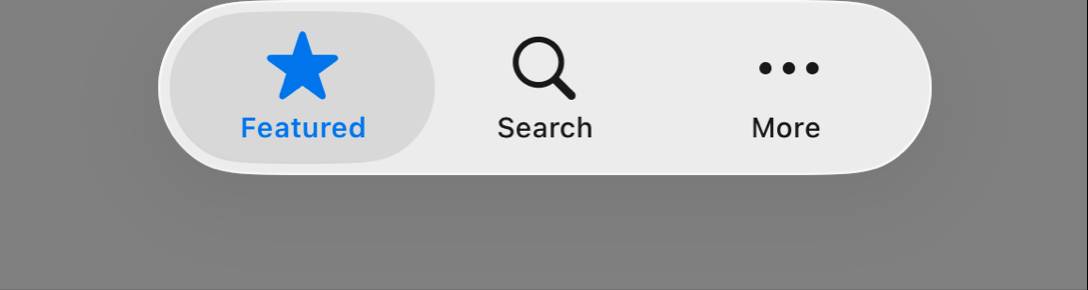

  • TabsGeom_normal_light -- 93.13% fidelity (SSIM 0.8851) (+0.14 vs baseline)

    native TabsGeom_normal_light cn1 TabsGeom_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_light -- 93.29% fidelity (SSIM 0.9811) (no change)

    native FlatButton_pressed_light cn1 FlatButton_pressed_light
    Left: native widget. Right: Codename One render.

  • TabsGeom_normal_dark -- 93.81% fidelity (SSIM 0.8925) (+0.14 vs baseline)

    native TabsGeom_normal_dark cn1 TabsGeom_normal_dark
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_light -- 93.91% fidelity (SSIM 0.9811) (no change)

    native FlatButton_normal_light cn1 FlatButton_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (no change)

    native Slider_disabled_light cn1 Slider_disabled_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_dark -- 94.08% fidelity (SSIM 0.9659) (no change)

    native RaisedButton_pressed_dark cn1 RaisedButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_dark -- 94.13% fidelity (SSIM 0.9660) (no change)

    native RaisedButton_normal_dark cn1 RaisedButton_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_light -- 94.26% fidelity (SSIM 0.9903) (no change)

    native RadioButton_selected_light cn1 RadioButton_selected_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_light -- 94.53% fidelity (SSIM 0.9633) (no change)

    native RaisedButton_pressed_light cn1 RaisedButton_pressed_light
    Left: native widget. Right: Codename One render.

  • GlassPanelPhoto_normal_dark -- 94.60% fidelity (SSIM 0.9505) (no change)

    native GlassPanelPhoto_normal_dark cn1 GlassPanelPhoto_normal_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_light -- 94.64% fidelity (SSIM 0.9632) (no change)

    native RaisedButton_normal_light cn1 RaisedButton_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelPhoto_normal_light -- 94.66% fidelity (SSIM 0.9507) (no change)

    native GlassPanelPhoto_normal_light cn1 GlassPanelPhoto_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (no change)

    native Slider_normal_light cn1 Slider_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

    native CheckBox_disabled_dark cn1 CheckBox_disabled_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

    native RadioButton_disabled_dark cn1 RadioButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

    native Switch_normal_light cn1 Switch_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9951) (no change)

    native CheckBox_selected_light cn1 CheckBox_selected_light
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

    native CheckBox_normal_dark cn1 CheckBox_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

    native RadioButton_normal_dark cn1 RadioButton_normal_dark
    Left: native widget. Right: Codename One render.

  • Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

    native Switch_selected_dark cn1 Switch_selected_dark
    Left: native widget. Right: Codename One render.

  • TextField_normal_dark -- 96.00% fidelity (SSIM 0.9370) (no change)

    native TextField_normal_dark cn1 TextField_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_dark -- 96.13% fidelity (SSIM 0.9894) (no change)

    native RadioButton_selected_dark cn1 RadioButton_selected_dark
    Left: native widget. Right: Codename One render.

  • Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (no change)

    native Switch_disabled_light cn1 Switch_disabled_light
    Left: native widget. Right: Codename One render.

  • TextField_disabled_dark -- 96.35% fidelity (SSIM 0.9395) (no change)

    native TextField_disabled_dark cn1 TextField_disabled_dark
    Left: native widget. Right: Codename One render.

  • Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

    native Switch_normal_dark cn1 Switch_normal_dark
    Left: native widget. Right: Codename One render.

  • TabOne_normal_light -- 96.90% fidelity (SSIM 0.9480) (no change)

    native TabOne_normal_light cn1 TabOne_normal_light
    Left: native widget. Right: Codename One render.

  • GlassIcon_normal_dark -- 97.18% fidelity (SSIM 0.9547) (no change)

    native GlassIcon_normal_dark cn1 GlassIcon_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassText_normal_dark -- 97.27% fidelity (SSIM 0.9563) (+0.06 vs baseline)

    native GlassText_normal_dark cn1 GlassText_normal_dark
    Left: native widget. Right: Codename One render.

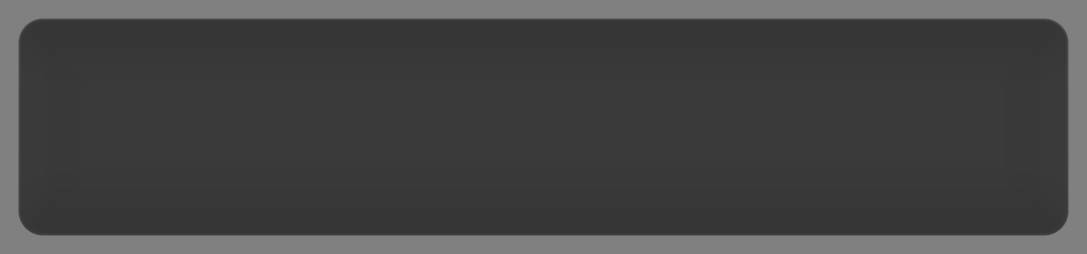

  • GlassPanelGrey_normal_dark -- 97.35% fidelity (SSIM 0.9588) (no change)

    native GlassPanelGrey_normal_dark cn1 GlassPanelGrey_normal_dark
    Left: native widget. Right: Codename One render.

  • TabOne_normal_dark -- 97.36% fidelity (SSIM 0.9531) (no change)

    native TabOne_normal_dark cn1 TabOne_normal_dark
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (no change)

    native ProgressBar_normal_dark cn1 ProgressBar_normal_dark
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (no change)

    native ProgressBar_normal_light cn1 ProgressBar_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelRed_normal_dark -- 97.73% fidelity (SSIM 0.9795) (no change)

    native GlassPanelRed_normal_dark cn1 GlassPanelRed_normal_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_dark -- 97.85% fidelity (SSIM 0.9945) (no change)

    native CheckBox_selected_dark cn1 CheckBox_selected_dark
    Left: native widget. Right: Codename One render.

  • Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (no change)

    native Dialog_normal_dark cn1 Dialog_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassPanelGrad_normal_dark -- 97.91% fidelity (SSIM 0.9752) (no change)

    native GlassPanelGrad_normal_dark cn1 GlassPanelGrad_normal_dark
    Left: native widget. Right: Codename One render.

  • Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (no change)

    native Dialog_normal_light cn1 Dialog_normal_light
    Left: native widget. Right: Codename One render.

  • Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (no change)

    native Switch_disabled_dark cn1 Switch_disabled_dark
    Left: native widget. Right: Codename One render.

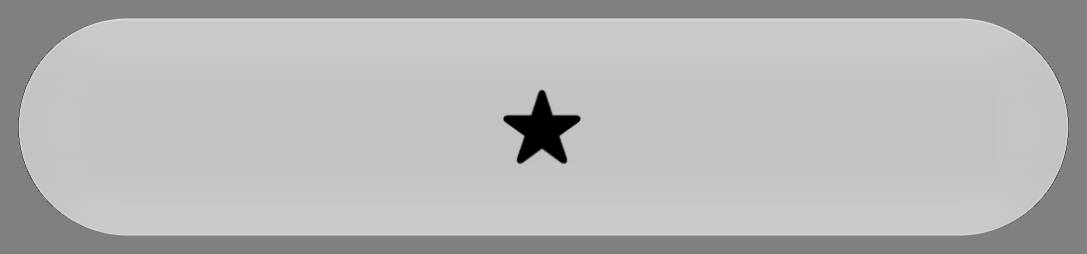

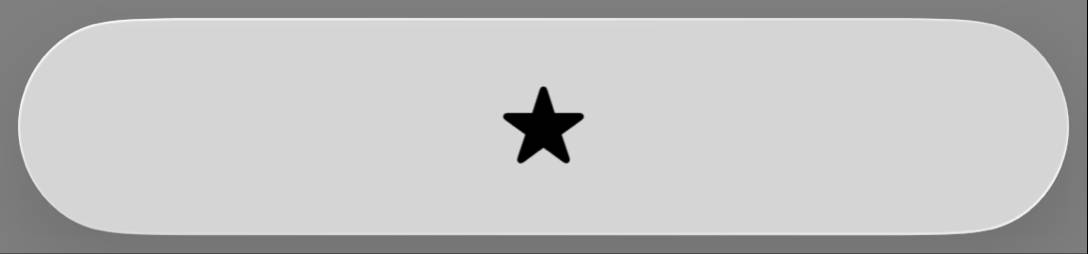

  • GlassIcon_normal_light -- 98.16% fidelity (SSIM 0.9750) (no change)

    native GlassIcon_normal_light cn1 GlassIcon_normal_light
    Left: native widget. Right: Codename One render.

  • GlassText_normal_light -- 98.31% fidelity (SSIM 0.9779) (+0.06 vs baseline)

    native GlassText_normal_light cn1 GlassText_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelGrad_normal_light -- 98.41% fidelity (SSIM 0.9876) (no change)

    native GlassPanelGrad_normal_light cn1 GlassPanelGrad_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelGrey_normal_light -- 98.70% fidelity (SSIM 0.9865) (no change)

    native GlassPanelGrey_normal_light cn1 GlassPanelGrey_normal_light
    Left: native widget. Right: Codename One render.

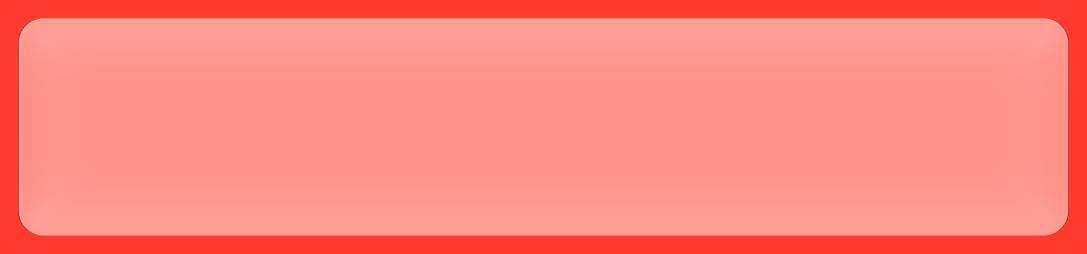

  • GlassPanelRed_normal_light -- 98.78% fidelity (SSIM 0.9900) (no change)

    native GlassPanelRed_normal_light cn1 GlassPanelRed_normal_light
    Left: native widget. Right: Codename One render.

@shai-almog

shai-almog commented Oct 16, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Native fidelity (iOS Modern, Metal)

68 pairs compared -- median 95.0%, worst 83.5% (Tabs_normal_dark), 25th pct 92.5%, mean 94.6%.

Distribution -- >=99%: 3 | 95-99%: 31 | 90-95%: 29 | <90%: 5

Component State Appearance Material Fidelity SSIM mean delta vs base Geometry
Tabs normal dark glass 83.5% 0.884 11.66 0.0 ok
Tabs normal light glass 86.4% 0.896 8.00 0.0 ok
Toolbar normal light glass 87.6% 0.951 4.24 0.0 ok
Toolbar normal dark glass 87.7% 0.950 3.69 0.0 ok
Button pressed dark glass 89.9% 0.958 4.21 0.0 OFF (off 12px, w 1.10)
TextField normal light normal 90.0% 0.958 2.78 -0.4 ok
Spinner normal dark normal 90.8% 0.881 3.39 -0.7 ok
TextField disabled light normal 91.1% 0.962 2.24 -0.2 ok
Spinner normal light normal 91.6% 0.910 4.11 -0.2 ok
RaisedButton disabled light glass 91.8% 0.961 3.09 +0.2 ok
Button normal dark glass 91.8% 0.958 3.52 0.0 OFF (off 12px, w 1.10)
Slider disabled dark normal 92.1% 0.943 2.45 -0.3 ok
Switch selected light normal 92.1% 0.981 1.47 0.0 ok
CheckBox normal light normal 92.2% 0.994 0.68 0.0 ok
RadioButton normal light normal 92.2% 0.994 0.68 0.0 ok
FlatButton normal dark glass 92.2% 0.983 2.21 +4.3 ok
Button normal light glass 92.4% 0.961 3.65 0.0 OFF (off 12px, w 1.10)
Slider normal dark normal 92.5% 0.944 2.63 -0.2 ok
RaisedButton disabled dark glass 92.7% 0.965 2.72 +1.3 ok
CheckBox disabled light normal 92.7% 0.995 0.50 0.0 ok
RadioButton disabled light normal 92.7% 0.995 0.50 0.0 ok
Button pressed light glass 92.9% 0.962 3.29 0.0 OFF (off 12px, w 1.10)
FlatButton pressed dark glass 92.9% 0.985 1.26 +2.3 ok
TabsGeom normal dark normal 93.0% 0.892 8.75 0.0 ok
TabsGeom normal light normal 93.0% 0.886 7.09 0.0 ok
FlatButton pressed light glass 93.2% 0.982 1.90 +4.3 ok
Button disabled dark glass 93.5% 0.962 2.47 0.0 OFF (off 12px, w 1.10)
Slider disabled light normal 94.0% 0.963 1.75 -0.1 OFF (h 4.50)
FlatButton normal light glass 94.2% 0.983 1.79 +1.3 ok
Button disabled light glass 94.4% 0.964 2.36 0.0 OFF (off 12px, w 1.10)
RaisedButton pressed dark glass 94.6% 0.965 2.07 +1.5 ok
RaisedButton normal dark glass 94.6% 0.966 2.08 +1.7 ok
RaisedButton pressed light glass 94.8% 0.967 2.22 +2.0 ok
RadioButton selected light normal 94.8% 0.992 0.86 0.0 ok
RaisedButton normal light glass 95.0% 0.967 2.19 +2.4 ok
Slider normal light normal 95.1% 0.959 1.56 0.0 ok
Switch normal light normal 95.5% 0.986 0.70 0.0 ok
CheckBox disabled dark normal 95.8% 0.993 0.25 0.0 ok
RadioButton disabled dark normal 95.8% 0.993 0.25 0.0 ok
CheckBox selected light normal 95.8% 0.994 0.67 0.0 ok
Switch selected dark normal 95.9% 0.985 1.02 0.0 ok
Switch disabled light normal 96.4% 0.990 0.53 0.0 ok
CheckBox normal dark normal 96.5% 0.993 0.35 0.0 ok
RadioButton normal dark normal 96.5% 0.993 0.35 0.0 ok
GlassPanelPhoto normal light glass 96.7% 0.980 7.95 +0.6 ok
GlassPanelPhoto normal dark glass 96.8% 0.983 8.78 +0.6 ok
TabOne normal dark normal 96.8% 0.953 4.44 +0.7 ok
Switch normal dark normal 96.8% 0.986 0.82 0.0 ok
RadioButton selected dark normal 96.8% 0.991 0.57 0.0 ok
TextField normal dark normal 96.9% 0.949 3.30 -0.2 ok
TextField disabled dark normal 97.2% 0.953 2.37 -0.2 ok
ProgressBar normal dark normal 97.5% 0.997 0.60 +3.0 ok
TabOne normal light normal 97.5% 0.961 2.90 +1.9 ok
ProgressBar normal light normal 97.6% 0.999 0.61 +2.2 ok
CheckBox selected dark normal 97.8% 0.993 0.38 0.0 ok
Dialog normal dark normal 97.9% 0.961 1.38 +0.9 ok
Dialog normal light normal 98.0% 0.963 1.42 +0.9 ok
Switch disabled dark normal 98.0% 0.987 0.41 +2.5 ok
GlassIcon normal dark normal 98.6% 0.984 3.55 0.0 ok
GlassText normal dark normal 98.6% 0.985 3.48 0.0 ok
GlassIcon normal light normal 98.7% 0.986 3.54 0.0 ok
GlassText normal light normal 98.7% 0.987 3.54 0.0 ok
GlassPanelGrad normal light normal 98.9% 0.994 4.38 +0.7 ok
GlassPanelGrad normal dark normal 99.0% 0.993 3.84 +0.5 ok
GlassPanelGrey normal dark normal 99.0% 0.992 3.30 +0.6 ok
GlassPanelGrey normal light normal 99.1% 0.994 3.29 +0.7 ok
GlassPanelRed normal dark normal 99.1% 0.993 3.22 +0.5 ok
GlassPanelRed normal light normal 99.1% 0.994 3.49 +0.7 ok
Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score
Component State Appearance bbox dx,dy (px) w ratio h ratio center off (px) radius native->cn1 (px)
Button pressed dark +0,+0 1.104 1.000 11.5 45.4 -> 45.3
Button normal dark +0,+0 1.104 1.000 11.5 45.8 -> 45.2
Button normal light +0,+0 1.104 1.000 11.5 44.5 -> 45.3
Button pressed light +0,+0 1.104 1.000 11.5 48.1 -> 45.4
Button disabled dark +0,+0 1.104 1.000 11.5 45.1 -> 45.2
Button disabled light +0,+0 1.104 1.000 11.5 44.0 -> 45.3
TabOne normal dark -3,+0 1.007 0.948 4.9 80.3 -> 77.3
TabOne normal light -3,+0 1.007 0.948 4.9 79.1 -> 77.0
Toolbar normal light +4,+7 0.987 0.926 3.5 62.5 -> 56.1
Toolbar normal dark +4,+7 0.987 0.919 3.2 60.5 -> 55.5
Switch selected light +0,+0 1.028 1.026 2.7 -
RaisedButton disabled dark +0,+0 1.024 1.011 2.6 49.8 -> 46.1
Slider disabled light +0,-29 1.000 4.500 2.5 -
CheckBox disabled light +1,-3 1.000 1.023 2.2 -
RadioButton disabled light +1,-3 1.000 1.023 2.2 -
CheckBox disabled dark +1,-3 1.000 1.023 2.2 -
RadioButton disabled dark +1,-3 1.000 1.023 2.2 -
RaisedButton disabled light +0,+0 1.019 1.011 2.1 54.1 -> 96.6
RaisedButton pressed dark +0,+0 1.019 1.011 2.1 44.5 -> 44.3
RaisedButton normal dark +0,+0 1.019 1.011 2.1 44.4 -> 44.3
RaisedButton pressed light +0,+0 1.019 1.011 2.1 44.7 -> 44.3
RaisedButton normal light +0,+0 1.019 1.011 2.1 44.5 -> 44.1
Switch normal light +0,+0 1.023 1.013 2.1 -
Switch disabled light +0,+0 1.023 1.013 2.1 -
Switch normal dark +0,+0 1.023 1.013 2.1 -
Switch disabled dark +0,+0 1.023 1.013 2.1 -
CheckBox normal dark +0,-2 1.000 1.000 2.0 -
RadioButton normal dark +0,-2 1.000 1.000 2.0 -
RadioButton selected dark +0,-2 1.000 1.000 2.0 -
CheckBox selected dark +0,-2 1.000 1.000 2.0 -
Tabs normal dark +9,+0 0.973 1.012 1.8 79.7 -> 80.7
Tabs normal light +9,+0 0.973 1.012 1.8 79.2 -> 80.3
TabsGeom normal dark +9,+0 0.973 1.012 1.8 80.5 -> 80.9
TabsGeom normal light +9,+0 0.973 1.012 1.8 79.3 -> 80.6
FlatButton normal dark +4,+0 0.966 1.011 1.6 91.8 -> 95.7
FlatButton pressed dark +4,+0 0.966 1.011 1.6 95.3 -> 97.9
Switch selected dark +0,+0 1.017 1.013 1.6 -
CheckBox normal light +0,-2 1.000 1.011 1.5 -
RadioButton normal light +0,-2 1.000 1.011 1.5 -
RadioButton selected light +0,-2 1.000 1.011 1.5 -
CheckBox selected light +0,-2 1.000 1.011 1.5 -
Spinner normal light +11,-9 0.978 1.055 1.1 -
GlassIcon normal dark +0,+1 0.999 1.000 1.1 92.1 -> 91.5
GlassText normal dark +0,+1 0.999 1.000 1.1 92.1 -> 91.5
Spinner normal dark +12,-9 0.977 1.055 1.0 -
GlassPanelGrey normal dark +0,+1 1.000 1.000 1.0 26.4 -> 26.9
TextField disabled light +0,+1 0.999 0.996 0.7 13.9 -> 38.7
FlatButton normal light +0,+0 0.993 1.011 0.7 91.9 -> 51.8
Slider disabled dark +0,-1 1.000 1.015 0.5 -
FlatButton pressed light +1,+0 0.986 1.011 0.5 95.4 -> 65.6
Slider normal light +0,+1 1.000 0.964 0.5 -
GlassPanelPhoto normal light +0,+0 1.000 1.005 0.5 25.6 -> 31.4
GlassPanelPhoto normal dark +0,+0 1.000 1.005 0.5 23.0 -> 27.0
ProgressBar normal dark +0,+0 1.000 0.900 0.5 -
ProgressBar normal light +0,+0 1.000 0.900 0.5 -
GlassIcon normal light +0,+0 1.000 1.005 0.5 91.6 -> 92.3
GlassText normal light +0,+0 1.000 1.005 0.5 91.6 -> 92.3
GlassPanelGrad normal light +0,+0 1.000 1.005 0.5 22.3 -> 25.9
GlassPanelGrad normal dark +1,+1 0.998 0.995 0.5 25.7 -> 22.5
GlassPanelGrey normal light +0,+0 1.000 1.005 0.5 22.4 -> 26.0
GlassPanelRed normal dark +1,+1 0.998 0.995 0.5 26.6 -> 22.8
GlassPanelRed normal light +0,+0 1.000 1.005 0.5 22.1 -> 26.1
TextField normal light +0,+0 1.000 1.000 0.0 13.4 -> 40.5
Slider normal dark +0,+0 1.000 1.000 0.0 -
TextField normal dark +0,+0 1.000 1.000 0.0 6.4 -> 15.1
TextField disabled dark +0,+0 1.000 1.000 0.0 6.4 -> 15.9
Dialog normal dark +0,+0 1.000 1.000 0.0 -
Dialog normal light +0,+0 1.000 1.000 0.0 -

Side-by-side comparisons (worst first)

  • Tabs_normal_dark -- 83.45% fidelity (SSIM 0.8842) (no change)

    native Tabs_normal_dark cn1 Tabs_normal_dark
    Left: native widget. Right: Codename One render.

  • Tabs_normal_light -- 86.44% fidelity (SSIM 0.8961) (no change)

    native Tabs_normal_light cn1 Tabs_normal_light
    Left: native widget. Right: Codename One render.

  • Toolbar_normal_light -- 87.64% fidelity (SSIM 0.9511) (no change)

    native Toolbar_normal_light cn1 Toolbar_normal_light
    Left: native widget. Right: Codename One render.

  • Toolbar_normal_dark -- 87.70% fidelity (SSIM 0.9495) (no change)

    native Toolbar_normal_dark cn1 Toolbar_normal_dark
    Left: native widget. Right: Codename One render.

  • Button_pressed_dark -- 89.93% fidelity (SSIM 0.9576) (no change)

    native Button_pressed_dark cn1 Button_pressed_dark
    Left: native widget. Right: Codename One render.

  • TextField_normal_light -- 90.03% fidelity (SSIM 0.9576) (-0.37 vs baseline)

    native TextField_normal_light cn1 TextField_normal_light
    Left: native widget. Right: Codename One render.

  • Spinner_normal_dark -- 90.78% fidelity (SSIM 0.8814) (-0.69 vs baseline)

    native Spinner_normal_dark cn1 Spinner_normal_dark
    Left: native widget. Right: Codename One render.

  • TextField_disabled_light -- 91.13% fidelity (SSIM 0.9619) (-0.22 vs baseline)

    native TextField_disabled_light cn1 TextField_disabled_light
    Left: native widget. Right: Codename One render.

  • Spinner_normal_light -- 91.58% fidelity (SSIM 0.9099) (-0.21 vs baseline)

    native Spinner_normal_light cn1 Spinner_normal_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_light -- 91.76% fidelity (SSIM 0.9613) (+0.15 vs baseline)

    native RaisedButton_disabled_light cn1 RaisedButton_disabled_light
    Left: native widget. Right: Codename One render.

  • Button_normal_dark -- 91.84% fidelity (SSIM 0.9583) (no change)

    native Button_normal_dark cn1 Button_normal_dark
    Left: native widget. Right: Codename One render.

  • Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (-0.31 vs baseline)

    native Slider_disabled_dark cn1 Slider_disabled_dark
    Left: native widget. Right: Codename One render.

  • Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

    native Switch_selected_light cn1 Switch_selected_light
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

    native CheckBox_normal_light cn1 CheckBox_normal_light
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

    native RadioButton_normal_light cn1 RadioButton_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_dark -- 92.21% fidelity (SSIM 0.9833) (+4.25 vs baseline)

    native FlatButton_normal_dark cn1 FlatButton_normal_dark
    Left: native widget. Right: Codename One render.

  • Button_normal_light -- 92.37% fidelity (SSIM 0.9609) (no change)

    native Button_normal_light cn1 Button_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (-0.22 vs baseline)

    native Slider_normal_dark cn1 Slider_normal_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_dark -- 92.65% fidelity (SSIM 0.9653) (+1.25 vs baseline)

    native RaisedButton_disabled_dark cn1 RaisedButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

    native CheckBox_disabled_light cn1 CheckBox_disabled_light
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

    native RadioButton_disabled_light cn1 RadioButton_disabled_light
    Left: native widget. Right: Codename One render.

  • Button_pressed_light -- 92.88% fidelity (SSIM 0.9617) (no change)

    native Button_pressed_light cn1 Button_pressed_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_dark -- 92.90% fidelity (SSIM 0.9849) (+2.31 vs baseline)

    native FlatButton_pressed_dark cn1 FlatButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • TabsGeom_normal_dark -- 93.02% fidelity (SSIM 0.8921) (+0.01 vs baseline)

    native TabsGeom_normal_dark cn1 TabsGeom_normal_dark
    Left: native widget. Right: Codename One render.

  • TabsGeom_normal_light -- 93.02% fidelity (SSIM 0.8861) (no change)

    native TabsGeom_normal_light cn1 TabsGeom_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_light -- 93.20% fidelity (SSIM 0.9819) (+4.33 vs baseline)

    native FlatButton_pressed_light cn1 FlatButton_pressed_light
    Left: native widget. Right: Codename One render.

  • Button_disabled_dark -- 93.52% fidelity (SSIM 0.9618) (no change)

    native Button_disabled_dark cn1 Button_disabled_dark
    Left: native widget. Right: Codename One render.

  • Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (-0.05 vs baseline)

    native Slider_disabled_light cn1 Slider_disabled_light
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_light -- 94.18% fidelity (SSIM 0.9825) (+1.32 vs baseline)

    native FlatButton_normal_light cn1 FlatButton_normal_light
    Left: native widget. Right: Codename One render.

  • Button_disabled_light -- 94.35% fidelity (SSIM 0.9636) (no change)

    native Button_disabled_light cn1 Button_disabled_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_dark -- 94.56% fidelity (SSIM 0.9653) (+1.46 vs baseline)

    native RaisedButton_pressed_dark cn1 RaisedButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_dark -- 94.57% fidelity (SSIM 0.9659) (+1.69 vs baseline)

    native RaisedButton_normal_dark cn1 RaisedButton_normal_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_light -- 94.80% fidelity (SSIM 0.9665) (+2.04 vs baseline)

    native RaisedButton_pressed_light cn1 RaisedButton_pressed_light
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_light -- 94.84% fidelity (SSIM 0.9916) (no change)

    native RadioButton_selected_light cn1 RadioButton_selected_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_light -- 95.01% fidelity (SSIM 0.9673) (+2.40 vs baseline)

    native RaisedButton_normal_light cn1 RaisedButton_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (-0.04 vs baseline)

    native Slider_normal_light cn1 Slider_normal_light
    Left: native widget. Right: Codename One render.

  • Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

    native Switch_normal_light cn1 Switch_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

    native CheckBox_disabled_dark cn1 CheckBox_disabled_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

    native RadioButton_disabled_dark cn1 RadioButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9938) (no change)

    native CheckBox_selected_light cn1 CheckBox_selected_light
    Left: native widget. Right: Codename One render.

  • Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

    native Switch_selected_dark cn1 Switch_selected_dark
    Left: native widget. Right: Codename One render.

  • Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (+0.04 vs baseline)

    native Switch_disabled_light cn1 Switch_disabled_light
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

    native CheckBox_normal_dark cn1 CheckBox_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

    native RadioButton_normal_dark cn1 RadioButton_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassPanelPhoto_normal_light -- 96.72% fidelity (SSIM 0.9804) (+0.64 vs baseline)

    native GlassPanelPhoto_normal_light cn1 GlassPanelPhoto_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelPhoto_normal_dark -- 96.76% fidelity (SSIM 0.9832) (+0.59 vs baseline)

    native GlassPanelPhoto_normal_dark cn1 GlassPanelPhoto_normal_dark
    Left: native widget. Right: Codename One render.

  • TabOne_normal_dark -- 96.77% fidelity (SSIM 0.9526) (+0.73 vs baseline)

    native TabOne_normal_dark cn1 TabOne_normal_dark
    Left: native widget. Right: Codename One render.

  • Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

    native Switch_normal_dark cn1 Switch_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_dark -- 96.81% fidelity (SSIM 0.9908) (no change)

    native RadioButton_selected_dark cn1 RadioButton_selected_dark
    Left: native widget. Right: Codename One render.

  • TextField_normal_dark -- 96.88% fidelity (SSIM 0.9492) (-0.20 vs baseline)

    native TextField_normal_dark cn1 TextField_normal_dark
    Left: native widget. Right: Codename One render.

  • TextField_disabled_dark -- 97.19% fidelity (SSIM 0.9526) (-0.15 vs baseline)

    native TextField_disabled_dark cn1 TextField_disabled_dark
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (+3.03 vs baseline)

    native ProgressBar_normal_dark cn1 ProgressBar_normal_dark
    Left: native widget. Right: Codename One render.

  • TabOne_normal_light -- 97.51% fidelity (SSIM 0.9608) (+1.89 vs baseline)

    native TabOne_normal_light cn1 TabOne_normal_light
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (+2.19 vs baseline)

    native ProgressBar_normal_light cn1 ProgressBar_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_dark -- 97.79% fidelity (SSIM 0.9932) (no change)

    native CheckBox_selected_dark cn1 CheckBox_selected_dark
    Left: native widget. Right: Codename One render.

  • Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (+0.89 vs baseline)

    native Dialog_normal_dark cn1 Dialog_normal_dark
    Left: native widget. Right: Codename One render.

  • Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (+0.86 vs baseline)

    native Dialog_normal_light cn1 Dialog_normal_light
    Left: native widget. Right: Codename One render.

  • Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (+2.48 vs baseline)

    native Switch_disabled_dark cn1 Switch_disabled_dark
    Left: native widget. Right: Codename One render.

  • GlassIcon_normal_dark -- 98.59% fidelity (SSIM 0.9841) (no change)

    native GlassIcon_normal_dark cn1 GlassIcon_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassText_normal_dark -- 98.64% fidelity (SSIM 0.9848) (+0.05 vs baseline)

    native GlassText_normal_dark cn1 GlassText_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassIcon_normal_light -- 98.67% fidelity (SSIM 0.9860) (no change)

    native GlassIcon_normal_light cn1 GlassIcon_normal_light
    Left: native widget. Right: Codename One render.

  • GlassText_normal_light -- 98.74% fidelity (SSIM 0.9874) (+0.05 vs baseline)

    native GlassText_normal_light cn1 GlassText_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelGrad_normal_light -- 98.91% fidelity (SSIM 0.9935) (+0.67 vs baseline)

    native GlassPanelGrad_normal_light cn1 GlassPanelGrad_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelGrad_normal_dark -- 98.98% fidelity (SSIM 0.9928) (+0.55 vs baseline)

    native GlassPanelGrad_normal_dark cn1 GlassPanelGrad_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassPanelGrey_normal_dark -- 98.99% fidelity (SSIM 0.9917) (+0.57 vs baseline)

    native GlassPanelGrey_normal_dark cn1 GlassPanelGrey_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassPanelGrey_normal_light -- 99.05% fidelity (SSIM 0.9936) (+0.67 vs baseline)

    native GlassPanelGrey_normal_light cn1 GlassPanelGrey_normal_light
    Left: native widget. Right: Codename One render.

  • GlassPanelRed_normal_dark -- 99.09% fidelity (SSIM 0.9926) (+0.52 vs baseline)

    native GlassPanelRed_normal_dark cn1 GlassPanelRed_normal_dark
    Left: native widget. Right: Codename One render.

  • GlassPanelRed_normal_light -- 99.10% fidelity (SSIM 0.9939) (+0.67 vs baseline)

    native GlassPanelRed_normal_light cn1 GlassPanelRed_normal_light
    Left: native widget. Right: Codename One render.

Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Reviewers

@chatgpt-codex-connector chatgpt-codex-connector[bot] chatgpt-codex-connector[bot] left review comments

Assignees

No one assigned

Labels

None yet

Projects

None yet

Milestone

No milestone

Development

Successfully merging this pull request may close these issues.

1 participant

@shai-almog
